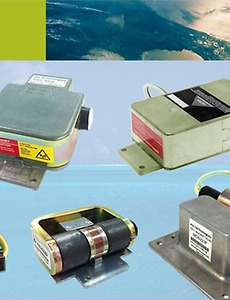

- 2012.06.28 :: E2V Magnetron List

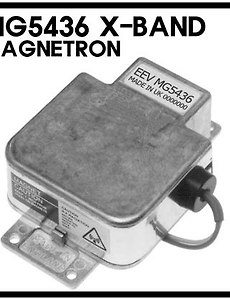

- 2012.06.28 :: MG5436 X-BAND MAGNETRON
- 2012.06.28 :: MG4006 X-Band Magnetron

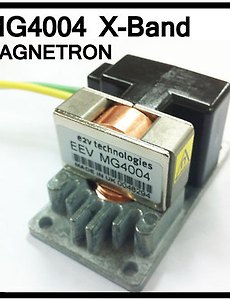

- 2012.06.28 :: MG4004 X-Band Magnetron

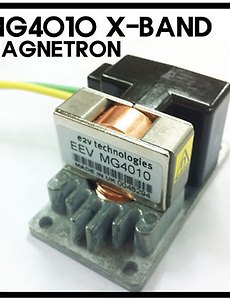

- 2012.06.28 :: MG4010 X-Band Magnetron

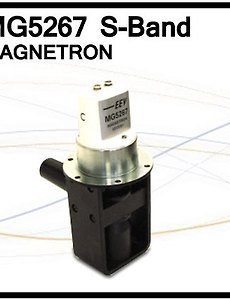

- 2012.06.28 :: MG5267 S-Band Magnetron

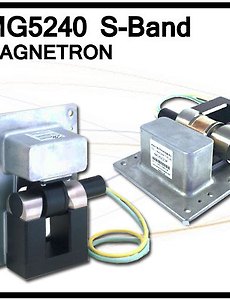

- 2012.06.28 :: MG5240 S-Band Magnetron

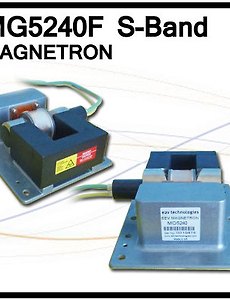

- 2012.06.28 :: MG5240F S-Band Magnetron
- 2012.06.28 :: MG5315 S-Band Magnetron
Radar Magnetron Corss References List | |
Equivalent Type | Request Type |
MG5435 | 2J55 |
MG5289 | 2J70A |
MG5267 | 2J70B |
9M31 | 9M31 |
9M40 | 9M40 |
9M65 | 9M502/E3526 |
9M72 | 9M72 |
M1437A | M1437A |
MG5264 | 9M72 or M1454 |
MG5256 | M1310 |
MG5222 | M1311L |
MG5239 | M1311L |
M5187F | M1325L |
MG5424 | M1458A |
M1461 | M1461 |
M1489 | M1489 |
MG5223 | M1555 |
MG5218 | M1568B |
MG5424 | M1568B |
MG5437 | M1568B |
MG5388 | MAF1421B |
MG5388C | MAF1421BN |
MG5353 | MAF1452B |
MG4006 | MAF1562B |
MG4010 | MAF1565N |
MG4004 | MAF1611B |
MG5251 | MRF1421B |
MG5238A | MRF1421C |
MG5233 | MRF1424B |
MG5234 | MRF1424C |
MG5238B | MRFB1421C |
MG5248 | MSF1421B |
MG5243 | MSF1421C |
MG5217 | MSF1422B |
MG5232 | MSF1422B |
MG5245 | MSF1425A |
MG5241 | MSF1425B |
MG5259 | MSS1422A |
MG5273 | MVF1422B |
9M602 | MVF1425B |
MG5257 | MVF1425B |
MG5255 | MVS1422B |
MG5244 | MVS1425A |
MG5258 | MVS1425B |
'Marine Radar Parts > Magnetron' 카테고리의 다른 글
Marine Radar Magnetron Corss References List (0) | 2012.06.28 |
---|---|
E2V Magnetron List (0) | 2012.06.28 |
MG5436 X-BAND MAGNETRON (0) | 2012.06.28 |
MG4006 X-Band Magnetron (0) | 2012.06.28 |
MG4004 X-Band Magnetron (0) | 2012.06.28 |
MG4010 X-Band Magnetron (0) | 2012.06.28 |
Part No. |
Frequency |
Peak Power |
Peak Anode |
Peak Anode |
MG5315 |
3040 - 3060 |
12 |
5.8 |
5 |
MG5223F |
3040 - 3060 |
30 |
8 |
8 |
MG5267 |
3025 - 3075 |
56 |
9 |
15 |
MG5240 |
3025 - 3075 |
60 |
9.3 |
15 |
MG5353 |
9380 - 9440 |
1.5 |
2 |
2 |
MG4004 |
9380 - 9440 |
4 |
3.7 |
3 |
MG5328A |
9415 - 9475 |
4 |
3.7 |
3 |
MG5238B |
9415 - 9475 |
4 |
3.7 |
3 |
MG5243 |
9415 - 9475 |
4 |
3.7 |
3 |
MG5248 |
9380 - 9440 |
4 |
3.7 |
3 |
MG5251 |
9380 - 9440 |
4 |
3.7 |
3 |
MG5388 |
9380 - 9440 |
4 |
3.7 |
3 |
MG4004C/MG5388C |
9380 - 9440 |
4 |
3.7 |
3 |
MG4006 |
9380 - 9440 |
6 |
4.5 |
4.5 |
MG5232 |
9380 - 9440 |
6 |
4.5 |
4.5 |
MG5232F |
9380 - 9440 |
6 |
4.5 |
3.5 |
MG5255 |
9380 - 9440 |
6 |
4.5 |
3.5 |
MG5273 |
9380 - 9440 |
6 |
4.5 |
3.5 |
MG5389 |
9380 - 9440 |
6 |
4.5 |
3.5 |
MG5233 |
9380 - 9440 |
8 |
4.4 |
5 |
MG5234 |
9415 - 9475 |
8 |
4.4 |
5 |
MG4010 |
9380 - 9440 |
12.5 |
5.8 |
5 |
MG5241 |
9380 - 9440 |
12.5 |
5.8 |
5 |
MG5241F |
9380 - 9440 |
12.5 |
5.8 |
5 |
MG5244 |
9345 - 9405 |
12.5 |
5.8 |
5 |
MG5245 |
9345 - 9405 |
12.5 |
5.8 |
5 |
MG5256 |
9345 - 9405 |
12.5 |
5.8 |
5 |
MG5257 |
9380 - 9440 |
12.5 |
5.8 |
5 |
MG5258 |
9380 - 9440 |
12.5 |
5.8 |
5 |
MG5473 |
9380 - 9440 |
12.5 |
5.8 |
5 |
M5068 |
9620 - 9680 |
25 |
8.2 |
8 |
M5089T |
9415 - 9460 |
25 |
8 |
8 |
M5187 |
9380 - 9440 |
25 |
8.2 |
8 |
M5187F |
9380 - 9440 |
25 |
8.2 |
8 |
MG5331 |
9380 - 9440 |
4 |
3.7 |
3 |
MG5218 |
9380 - 9440 |
25 |
8.4 |
8 |
MG5222 |
9345 - 9405 |
25 |
8.2 |
8 |
MG5230T |
9140 - 9200 |
25 |
8 |
8 |
MG5231T |
9460 - 9520 |
25 |
8 |
8 |
MG5239T |
9345 - 9405 |
25 |
8 |
8 |
MG5242T |
9380 - 9440 |
25 |
8 |
8 |
MG5264 |
9380 - 9440 |
25 |
8.2 |
8 |
MG5271 |
9345 - 9405 |
25 |
8.4 |
8 |
MG5424 |
9380 - 9440 |
25 |
8.2 |
8 |
MG5436 |
9380 - 9440 |
25 |
8.2 |
8 |
MG5437 |
9380 - 9440 |
25 |
8.2 |
8 |
MG5494 |
8870 - 8930 |
25 |
8.2 |
8 |
M5199 |
9415 - 9475 |
30 |
8.3 |
9 |
MG5265 |
9455 - 9495 |
30 |
8.3 |
9 |
MG5388S |
9380 - 9440 |
4 |
3.7 |
3 |
MG5411 |
9220 - 9280 |
25 |
8.2 |
8 |
MG5497T |
9210 - 9240 |
25 |
8 |
8 |
MG5500 |
3010 - 3030 |
30 |
8 |
8 |
MG5501 |
3070 - 3090 |
30 |
8 |
8 |
MG5503 |
9470 - 9490 |
25 |
8.2 |
8 |
MG5223 |
3040 - 3060 |
30 |
8 |
8 |
MG5240F |
3025 - 3075 |
62 |
9.3 |
15 |
'Marine Radar Parts > Magnetron' 카테고리의 다른 글
Marine Radar Magnetron Corss References List (0) | 2012.06.28 |
---|---|
E2V Magnetron List (0) | 2012.06.28 |
MG5436 X-BAND MAGNETRON (0) | 2012.06.28 |
MG4006 X-Band Magnetron (0) | 2012.06.28 |
MG4004 X-Band Magnetron (0) | 2012.06.28 |
MG4010 X-Band Magnetron (0) | 2012.06.28 |
댓글을 달아 주세요
GENERAL DATA
Electrical | ||
Operating frequency |
9410 +- 30 |
MHz |
Typical peak outputcpower |
25 |
kW |
Cathode |
indirectly heated | |
Heater voltage (see note 1) |
6.3 |
V |
Heater current at 6.3V (see note 2) |
0.5 |
A |
Cathode pre-heating time |
60 |
s |
Input capacitance |
9.0 |
pFmax |
Temperature |
see note 4 |
Mechanical | |
Overall dimensions |
see Outline |
Net weight |
2.1 kg approx |
Mounting position |
any |
Coupler |
IEC UBR100 |
Cooling |
natural |
Magnet |
integral |
Output |
no.16waveguide |
A minimum clearance of 25 mm must be maintained between |
Notes
1. For optimum performance a value of 6.3 V is recommended. However, this magnetron will work
satisfactorily within the specified limits.
The magnetron heater must be protected against arcing by the use of a minimum capacitance of
4000 pF shunted across the heater directly at the input terminals;
in some cases a capacitance as high as 2 mF may be necessary depending on the equipment
design. For further details see the Magnetron Preamble.
2. Measured with heater voltage of 6.3 V and no anode input power, the heater current limits are 0.5 A
minimum, 0.6 A maximum.
3. For ambient temperatures above 0 8C. For ambient temperatures between 0 and 755 8C, cathode
pre-heating time is 90 seconds minimum.
4. Design test only. The maximum frequency change with anode temperature change (after warming) is
70.25 MHz/8C.
OUTLINE DIMENSIONS
Outline Notes
1. The mating surface of the magnetron baseplate will be flat to within 0.20 mm.
2. Positional tolerance of holes +0.2 mm with respect to waveguide aperture.
NJRC M1568B(S)(J)를 대체하여 사용하실수 있습니다.
'Marine Radar Parts > Magnetron' 카테고리의 다른 글
Marine Radar Magnetron Corss References List (0) | 2012.06.28 |
---|---|
E2V Magnetron List (0) | 2012.06.28 |
MG5436 X-BAND MAGNETRON (0) | 2012.06.28 |
MG4006 X-Band Magnetron (0) | 2012.06.28 |
MG4004 X-Band Magnetron (0) | 2012.06.28 |
MG4010 X-Band Magnetron (0) | 2012.06.28 |
댓글을 달아 주세요
ABRIDGED DATA | |||||
Compact, rugged, lightweight, fixed frequency pulse magnetron with very low levels of unwanted emissions. | |||||
Operating frequency |
9410 ± 30 |
MHz | |||
Typical peak output power |
6.0 |
kW | |||
Magnet |
integral | ||||
Cooling |
conduction and natural | ||||
Electrical |
Mechanical | ||||
Cathode |
indirectly heated |
Overall dimensions |
see outline | ||
Heater voltage (see note 1) |
6.3 |
V |
Netweight |
250g approx | |
Heater current at 6.3V |
0.55 |
A |
Mounting position |
any | |
Cathode pre-heating time |
60 |
s |
Coupler |
IECUBR100 | |
Input capacitance | 8.0 | pF max | Output | no.16waveguide | |
Temperature coefficient of frequency |
see note 4 |
A minimum clearance of 25 mm must be maintained betweenthe magnetron and any magnetic materials. |
NOTES
1. No reduction of heater voltage is required at any value of mean input power.
For optimum performance a value within the specified ratings must be maintained.
The magnetron heater must be protected against arcing by the use of a minimum capacitance of 4000 pF shunted across the heater directly at the input terminals; in some cases a capacitance as high as 2 mF may be necessary depending on the equipment design. For further details see the Magnetron Preamble.
2. Measured with heater voltage of 6.3 V and no anode input power, the heater current limits are 0.5 A minimum, 0.6 A maximum.
3. For ambient temperatures above 0 ℃. For ambient temperatures between 0 and -55 ℃, cathode pre-heating time is 75 seconds minimum.
4. Design test only. The maximum frequency change with anode temperature change (after warming) is -0.25 MHz/8C.
'Marine Radar Parts > Magnetron' 카테고리의 다른 글
E2V Magnetron List (0) | 2012.06.28 |
---|---|
MG5436 X-BAND MAGNETRON (0) | 2012.06.28 |
MG4006 X-Band Magnetron (0) | 2012.06.28 |
MG4004 X-Band Magnetron (0) | 2012.06.28 |
MG4010 X-Band Magnetron (0) | 2012.06.28 |
MG5267 S-Band Magnetron (0) | 2012.06.28 |
댓글을 달아 주세요
GENERAL DATA
Electrical | ||
Operating frequency |
9410 ± 30 MHz | |
Cathode |
indirectly heated | |
Heater voltage (see note 1) |
6.3 |
V |
Heater current at 6.3V |
0.5 |
A |
Cathode pre-heating time |
30 |
s |
Input capacitance |
8.0 |
pF max |
Mechanical | |
Output |
no.16 wave guide |
Overall dimensions |
see Outline |
Net weight |
250g approx |
Mounting position |
any |
Coupler |
IEC UBR 100 |
Cooling |
natural |
Magnet |
integral |
A minimum clearance of 5 mm must be |
NOTES
1. No reduction of heater voltage is required at any value of mean input power.For optimum performance a value within the specified ratings must be maintained.
The magnetron heater must be protected against arcing by the use of a minimum
capacitance of 4000 pF shunted across the heater directly at the input terminals;
in some cases a capacitance as high as 2mF may be necessary depending on the
equipment design. For further details see the Magnetron Preamble.
2. Measured with heater voltage of 6.3 V and no anode input power, the heater
current limits are 0.5 A minimum, 0.6 A maximum.
3. For ambient temperatures above 0 ℃. For ambient temperatures between
0 and -55 ℃, cathode pre-heating time is 75 seconds minimum.
OUTLINE (Not for inspection purposes)
(All dimensions without limits are nominal)
'Marine Radar Parts > Magnetron' 카테고리의 다른 글
MG5436 X-BAND MAGNETRON (0) | 2012.06.28 |
---|---|
MG4006 X-Band Magnetron (0) | 2012.06.28 |
MG4004 X-Band Magnetron (0) | 2012.06.28 |
MG4010 X-Band Magnetron (0) | 2012.06.28 |
MG5267 S-Band Magnetron (0) | 2012.06.28 |
MG5240 S-Band Magnetron (0) | 2012.06.28 |
댓글을 달아 주세요
GENERAL DATA
Electrical | ||
Cathode |
indirectly | |
Heater voltage (see note 1) |
6.3 |
V |
Heater current at 6.3V |
0.55 |
A |
Cathode pre-heating time |
60 |
s |
Input capacitance |
8.0 |
pF max |
Temperature coefficient of |
(see note 4) |
Mechanical | |
Output |
no.16 wave guide |
Overall dimensions |
see Outline |
Net weight |
250g approx |
Mounting position |
any |
Coupler |
IEC UBR 100 |
Cooling |
conduction and natural |
Magnet |
integral |
A minimum clearance of 5 mm must be |
NOTES
1. No reduction of heater voltage is required at any value of mean input power.For optimum performance a value within the specified ratings must be maintained.
The magnetron heater must be protected against arcing by the use of a minimum
capacitance of 4000 pF shunted across the heater directly at the input terminals;
in some cases a capacitance as high as 2mF may be necessary depending on the
equipment design. For further details see the Magnetron Preamble.
2. Measured with heater voltage of 6.3 V and no anode input power, the heater
current limits are 0.5 A minimum, 0.6 A maximum.
3. For ambient temperatures above 0 ℃. For ambient temperatures between
0 and -55 ℃, cathode pre-heating time is 75 seconds minimum.
4. Design test only. The maximum frequency change with
anode temperature change (after warming) is -0.25 MHz/℃.
OUTLINE (Not for inspection purposes)
(All dimensions without limits are nominal)
MG4010(10Kw)입니다. MG5241대체용으로 사용이 가능합니다.
최신 4세대 공정으로 제작되어 컴팩트함과 성능이 향상 되었습니다.사진은 플레이트를 적용을 시킨 사진으로서 레이더타입마다 조금씩 틀려 위와같이 플레이트가 필요없는 경우도 있습니다. 그럴경우 +드라이버 하나만으로 플레이트를 분리해서 레이더에 장착하시면 대체되는 10kW급 모든 레이더에 장착이 가능합니다.
'Marine Radar Parts > Magnetron' 카테고리의 다른 글
MG4006 X-Band Magnetron (0) | 2012.06.28 |
---|---|
MG4004 X-Band Magnetron (0) | 2012.06.28 |
MG4010 X-Band Magnetron (0) | 2012.06.28 |
MG5267 S-Band Magnetron (0) | 2012.06.28 |
MG5240 S-Band Magnetron (0) | 2012.06.28 |
MG5240F S-Band Magnetron (0) | 2012.06.28 |
댓글을 달아 주세요
ABRIDGED DATA | |||||
Fixed frequency pulse magnetron. It is an improved version of the | |||||
Operating frequency |
3050 ± 25 |
MHz | |||
Typical peak output power |
56 |
kW | |||
Output |
probe radiating into waveguide launching section | ||||
Magnet |
integral | ||||
Launching section |
not supplied | ||||
Electrical |
Mechanical | ||||
Cathode |
indirectly heated |
Overall dimensions |
see outline | ||
Heater voltage (see note 1) |
6.3 |
V |
Netweight |
1.7 kg approx | |
Heater current at 6.3V |
1.25 |
A |
Mounting position |
any | |
Cathode pre-heating time |
3.0 |
min |
Cooling(see note 2) |
natural or forced-air | |
Heater starting current, peak value, |
6.0 |
A max |
A minimum clearance of 50 mm must be maintained between |
NOTES
1. With no anode input power.
On the application of anode power, the heater voltage must be reduced as follows:
Mean input power Heater voltage
(W) (Vrms)
less than 25 6.3
25 to 62 5.3
62 to 100 4.5
The magnetron heater must be protected against arcing by the use of a minimum capacitance of 4000 pF shunted across
the heater directly at the input terminals; in some cases a capacitance as high as 2 mF may be necessary depending
on the equipment design. For further details see the Magnetron Preamble.
2. The anode temperature must be kept below the limit specified by means of a suitable flow of air over the anode body.
OUTLINE (All dimensions without limits are nominal)
'Marine Radar Parts > Magnetron' 카테고리의 다른 글
MG4004 X-Band Magnetron (0) | 2012.06.28 |
---|---|
MG4010 X-Band Magnetron (0) | 2012.06.28 |
MG5267 S-Band Magnetron (0) | 2012.06.28 |
MG5240 S-Band Magnetron (0) | 2012.06.28 |
MG5240F S-Band Magnetron (0) | 2012.06.28 |
MG5315 S-Band Magnetron (0) | 2012.06.28 |
댓글을 달아 주세요
ABRIDGED DATA | |||||
Fixed frequency pulse magnetron. | |||||
Operating frequency |
3050 ± 25 |
MHz | |||
Typical peak output power |
60 |
kW | |||
Magnet |
integral | ||||
Coupler |
mates with NATO S.N. 5985-99-083-0058 |
Electrical | ||
Cathode |
indirectly heated | |
Heater voltage (see note 1) |
6.3 |
V |
Heater current at 6.3V |
1.25 |
A |
Cathode pre-heating time |
3.0 |
min |
Heater starting current, peak value, |
6.0 |
A max |
Mechanical | ||
Overall dimensions |
see outline | |
Netweight |
2.1 kg approx | |
Mounting position |
any | |
Cooling (see note 2) |
forced-air | |
A minimum clearance of 25 mm must be maintained between |
NOTES
1. With no anode input power.
On the application of anode power, the heater voltage must be reduced as follows:
where Pi = mean input power in watts.
The magnetron heater must be protected against arcing by the use of a minimum capacitance of 4000 pF
shunted across the heater directly at the input terminals; in some cases a capacitance as high as 2 mF
may be necessary depending on the equipment design. For further details see the Magnetron Preamble.
2. The anode temperature must be kept below the limit specified by means of a suitable flow of air over
the anode body.
OUTLINE DIMENSIONS
Outline Notes
Positional tolerance of holes 0.4 mm diameter with respect to waveguide.
'Marine Radar Parts > Magnetron' 카테고리의 다른 글
MG4010 X-Band Magnetron (0) | 2012.06.28 |
---|---|
MG5267 S-Band Magnetron (0) | 2012.06.28 |
MG5240 S-Band Magnetron (0) | 2012.06.28 |
MG5240F S-Band Magnetron (0) | 2012.06.28 |
MG5315 S-Band Magnetron (0) | 2012.06.28 |
MG5314 S-Band Magnetron (0) | 2012.06.28 |
댓글을 달아 주세요
ABRIDGED DATA | |||||
Fixed frequency pulse magnetron. | |||||
Operating frequency |
3050 ± 25 |
MHz | |||
Typical peak output power |
60 |
kW | |||
Magnet |
integral | ||||
Coupler |
mates with NATO S.N. 5985-99-083-0058 |
Electrical | ||
Cathode |
indirectly heated | |
Heater voltage (see note 1) |
6.3 |
V |
Heater current at 6.3V |
1.25 |
A |
Cathode pre-heating time |
3.0 |
min |
Heater starting current, peak value, |
6.0 |
A max |
Mechanical | ||
Overall dimensions |
see outline | |
Netweight |
2.1 kg approx | |
Mounting position |
any | |
Cooling (see note 2) |
forced-air | |
A minimum clearance of 25 mm must be maintained between |
NOTES
1. With no anode input power.
On the application of anode power, the heater voltage must be reduced as follows:
where Pi = mean input power in watts.
The magnetron heater must be protected against arcing by the use of a minimum capacitance of 4000 pF
shunted across the heater directly at the input terminals; in some cases a capacitance as high as 2 mF
may be necessary depending on the equipment design. For further details see the Magnetron Preamble.
2. The anode temperature must be kept below the limit specified by means of a suitable flow of air over
the anode body.
OUTLINE DIMENSIONS
Outline Notes
Positional tolerance of holes 0.4 mm diameter with respect to waveguide.
'Marine Radar Parts > Magnetron' 카테고리의 다른 글
MG5267 S-Band Magnetron (0) | 2012.06.28 |
---|---|
MG5240 S-Band Magnetron (0) | 2012.06.28 |
MG5240F S-Band Magnetron (0) | 2012.06.28 |
MG5315 S-Band Magnetron (0) | 2012.06.28 |
MG5314 S-Band Magnetron (0) | 2012.06.28 |
M5199 X-Band Magnetron (0) | 2012.06.28 |
댓글을 달아 주세요
ABRIDGED DATA | |||||
Compact, rugged, lightweight, fixed frequency pulse magnetron. | |||||
Operating frequency |
3050 ± 10 |
MHz | |||
Typical peak output power |
12 |
kW | |||
Magnet | integral | ||||
Out put |
No.10 waveguide (2.840 x 1.340 inch internal) | ||||
Coupler |
mates with NATO S.N. 5985-99-083-0058 | ||||
Electrical |
Mechanical | ||||
Cathode |
indirectly heated |
Overall dimensions |
see outline | ||
Heater voltage (see note 1) |
6.3 |
V |
Netweight |
1.0 kg approx | |
Heater current at 6.3V |
0.75 |
A |
Mounting position |
any | |
Cathode pre-heating time |
60 |
s |
Cooling |
natural or conduction | |
|
A minimum clearance of 25mm must be maintained between |
NOTES
1. No reduction of heater voltage is required at any value of mean input power. For optimum
performance a value within the specified ratings must be maintained.
The magnetron heater must be protected against arcing by the use of a minimum capacitance
of 4000 pF shunted across the heater directly at the input terminals; in some cases a capacitance
as high as 2 mF may be necessary depending on the equipment design. For further details see the
Magnetron Preamble.
2. For ambient temperatures above 0`C. For ambient temperatures between 0 and -55 `C, cathode
pre-heating time is 90 seconds minimum.
OUTLINE DIMENSIONS
'Marine Radar Parts > Magnetron' 카테고리의 다른 글
MG5240 S-Band Magnetron (0) | 2012.06.28 |
---|---|
MG5240F S-Band Magnetron (0) | 2012.06.28 |
MG5315 S-Band Magnetron (0) | 2012.06.28 |
MG5314 S-Band Magnetron (0) | 2012.06.28 |
M5199 X-Band Magnetron (0) | 2012.06.28 |
M5089 X-Band Magnetron (0) | 2012.06.28 |
댓글을 달아 주세요
