Medical Parts/Thyratron 2013. 9. 13. 11:06

CX1191D Deuterium Thyratron

ABRIDGED DATA

Deuterium-filled tetrode thyratron of ruggedised construction,suitable for use in airborne or
mobile military radar systems. It isused for switching peak powers up to 8.0 MW at high repetition
rates under a wide range of operating conditions. It has arugged, internally connected reservoir.
Samples are subjected to extensive environmental test procedures including vibration
at 2g from 50 to 200 Hz.

Peak forward anode voltage

35

kVmax

Peak anode current

500

A max

Average anode current

0.5

A max

Electrical

Mechanical

Cathode (connected internally
to mid-point of heater)

oxide coated

Overall length

223.8 mm max

Heater voltage

6.3 ± 7 1/2%

V

Base

B4D, bayonet

Heater current

12.5

A

Net weight

340 g approx

Tube heating time (minimum)
(see note 1)

5.0

min

Overall diameter

65.1 mm max

Inter-electrode capacitances (approximate): Mounting position
(see note 2)		 any
anode to grid 2
(grid 1 and cathode not connected)		 9.0 pF Top cap connector
 BS448-CT3
anode to grid 1
(grid 2 and cathode not connected)		 4.5 Cooling
(see note 3)		 natural

anode to cathode
(grid 1 and grid 2 not connected)

 18

NOTES

1. The maximum permissible peak forward voltage for instantaneous starting is 20 kV and there must be no overshoot. For single-shot and crowbar applications, each tube is tested to withstand 35 kV DC at 6.3 V heater voltage for 10 minutes, with 100 mA grid 1 drive current and 7100 V grid 2 bias.

2. Clamping is only permissible by the base.

3. In some applications, air cooling may be necessary to prevent the base temperature from exceeding 200

℃.

OUTLINE(All dimensions without limits are nominal)

저작자표시비영리변경금지

'Medical Parts > Thyratron' 카테고리의 다른 글

CX1191D Deuterium Thyratron  (0) 2013.09.13
Medical Linac Thyratron List  (0) 2012.06.20
CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
Trackback 0 : Comment 0

댓글을 달아 주세요

Medical Parts/Thyratron 2012. 6. 20. 17:45

Medical Linac Thyratron List

We have an extensive thyratron range, suitable for most LINAC machines.

The original equipment manufacturers only approve e2v valves for service replacement.

E2V Part No.

Peak Anode
Voltage

Peak Current
(kA)

Maximum
Average Current(A)

 8503AF

20

0.325

0.5

 8503AG

20

0.325

0.5

 8503B

20

0.325

0.5

 CX1140

25

1

1.25

 CX1140A

25

1

1.25

 CX1140L

25

1

1.25

 CX1140LD

25

1

1.25

 CX1140LE

25

1

1.25

 CX1154

40

3

2

 CX1154L

35

3

2

 CX1159

33

1

1.25

 CX1180

25

1

1.25

 CX1528

35

5

5

 CX1559

35

1.5

1.5

 FX2536

16

0.35

0.5

 FX2572

20

0.35

0.5

 FX2585

20

0.325

0.5

 MA391 Series

Current Pulse Measurement Transformers

저작자표시비영리변경금지

'Medical Parts > Thyratron' 카테고리의 다른 글

CX1191D Deuterium Thyratron  (0) 2013.09.13
Medical Linac Thyratron List  (0) 2012.06.20
CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
Trackback 0 : Comment 0

댓글을 달아 주세요

Medical Parts/Thyratron 2012. 6. 15. 14:47

CX1551 Thyratron



ABRIDGED DATA

Deuterium-filled tetrode thyratron, featuring low jitter and low anode delay time drift.
Suitable for use at high pulse repetition rates,
in parallel for switching higher powers, or for switching long pulses.
A reservoir operating from the cathode heater supply is incorporated.
The tube is flange mounted with flexible lead connections.

Peak output power

16.5

MW max

Peak forward anode voltage

33

kVmax

Peak anode current

1.0

kA max

Average anode current

1.25

A max

Anode heating factor

14 x 109 VApps

max

Electrical

Cathode (connected internally
to mid-point of heater)

oxide coated

Heater voltage

6.3 ± 5%

V

Heater current

22

A

Tube heating time (minimum)

5.0

min

         Inter-electrode capacitances (approximate):

anode to grid 2 (grid 1 and
cathode not connected)

13

 pF

anode to grid 1 (grid 2 and
cathode not connected)

7.5

anode to cathode (grid 1 and
grid 2 not connected)

26

Mechanical

Overall length

11.850 inches (301.0 mm) max

Overall diameter

3.312 inches (84.12 mm) max

Net weight

1 1/2 pounds (0.7 kg) approx

Mounting position (see note 1)

any

Top cap (see note 2) B.S.448-CT3
Cooling natural



NOTES

1. Clamping is only permissible by the base.
2. A large area anode connector, Marconi Applied Technologies type MA360, is recommended.



OUTLINE(All dimensions without limits are nominal)

'Medical Parts > Thyratron' 카테고리의 다른 글

CX1191D Deuterium Thyratron  (0) 2013.09.13
Medical Linac Thyratron List  (0) 2012.06.20
CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
TAG 1159, CX1159, Linac, Thyratron
Trackback 0 : Comment 0

댓글을 달아 주세요

Medical Parts/Thyratron 2012. 6. 15. 14:25

CX1154 Ceramic Thyratron

ABRIDGED DATA

Deuterium-filled tetrode thyratron with ceramic/metal envelope, featuring low jitter, firing time and drift.
Suitable for switching high power at high pulse repetition rates or for switching long pulses.
A reservoir operating from a separate heater supply is incorporated.

Peak forward anode voltage

40

kVmax

Peak anode current

3.0

kA max

Average anode current

2.0

A max

Electrical

Cathode (connected internally
to one end of heater)

oxide coated

Cathode Heater voltage

6.3 ± 0.5

V

Cathode Heater current

22.5

A

Reservoir heater voltage
(see note 1)

5.0

V

Reservoir heater current

 7.0 A

Tube heating time (minimum)

15

 min

Anode to grid 2 capacitance

15 to 20

 pF

Mechanical

Seated height

165.1 mm max

Clearance required below mounting flange

38.1 mm max

Overall diameter (mounting flange)

111.1 mm nom

Net weight

1.8 kg (4 pounds) approx

Mounting position (see note 2) any

Tube connections

see outline

Cooling

liquid or forced-air

NOTES

1. The reservoir heater must be decoupled with a suitable capacitor to avoid damage by spike voltages.  The recommended reservoir heater voltage for each individual tube is stamped on the tube envelope. This recommended value is determined for hold-off at the maximum anode voltage under DC conditions.
For lower voltages and modulator operation the reservoir heater voltage should be increased to a
value consistent with voltage hold-off at the operating level. Maximum reservoir voltage (i.e. maximum gas pressure in the tube) is one prerequisite for maximum thyratron life. The reservoir voltage should be stabilised to +0.05 V.



2. The tube must be fitted using its mounting flange.



OUTLINE(All dimensions without limits are nominal)



'Medical Parts > Thyratron' 카테고리의 다른 글

Medical Linac Thyratron List  (0) 2012.06.20
CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
E2V 8503AG Hydrogen Thyratrons  (0) 2011.08.18
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
Trackback 0 : Comment 0

댓글을 달아 주세요

Medical Parts/Thyratron 2011. 9. 19. 16:17

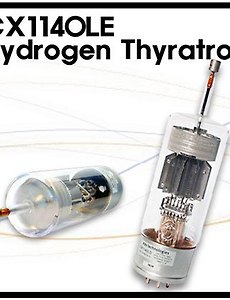

E2V CX1140LE Hydrogen Thyratrons



CX1140LD를 대처하는 신공정 제품입니다!
알파트론은 상시 재고를 확보하고 있어 빠른 시간안에 딜리버리가 가능합니다!



GENERAL DATA

Electrical

Cathode connected
(indirectlyto mid-point of heated)

oxide
coated

Heater voltage

6.3+-5%

V

Heater current

22

A

Tube heating time (minimum)

5.0

min

Mechanical

Overall length

317.5 mm (12.500 inches) max

Overall diameter

84.12 mm (3.312 inches) max

Net weight

0.7kg(11/2 pounds) approx

Mounting position
(see note 1)

any

Cooling

natural

Base pin spacing as B5F;
metal shell with micalex insert

Top cap (see note 2)

BS448-CT3 CX1140LD is
also available with a flange base with
flying leads as type CX1551L.

Notes

1. Clamping is only permissible by the base.
2. A large area anode connector, e2v technologies type
MA360, is recommended.





OUTLINE(All dimensions without limits are nominal)


'Medical Parts > Thyratron' 카테고리의 다른 글

CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
E2V 8503AG Hydrogen Thyratrons  (0) 2011.08.18
E2V 8503AF Hydrogen Thyratron(사이렉트론)  (0) 2010.12.24
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
TAG CX1140LD, CX1140LE
Trackback 0 : Comment 0

댓글을 달아 주세요

Medical Parts/Thyratron 2011. 9. 5. 12:14

E2V CX1140LD Hydrogen Thyratrons

ABRIDGED DATA
Deuterium-filled, fast recovery, tetrode thyratron, specifically designed for operation under medical linac conditions. A reservoir operating from the cathode heater supply is incorporated.
Peak forward anode voltage . . . . . . 33 kVmax
Peak anode current . . . . . . . . 1000 A max
Average anode current:
continuous operation . . . . . . . . 1.25 A max
intermittent operation . . . . . . . . 2.2 Amax

GENERAL Electrical
Cathode (connected internally to mid-point of heater) . . . . . . . . oxide coated
Heater voltage . . . . . . . . . 6.3+ 5% V
Heater current . . . . . . . . . . . 22 A
Tube heating time (minimum) . . . . . . . 5.0 min

Mechanical
Overall length . . . . . 317.5 mm (12.500 inches) max
Overall diameter . . . . . 84.12 mm (3.312 inches) max
Net weight . . . . . . . 0.7kg(11/2 pounds) approx
Mounting position (see note 1) . . . . . . . . . any
Base . pin spacing as B5F; metal shell with micalex insert
Top cap (see note 2) . . . . . . . . . BS448-CT3
CX1140LD is also available with a flange base with flying leads
as type CX1551L.
Cooling . . . . . . . . . . . . . . . natural

알파트론은 상시 재고를 확보하고 있어 빠른 시간안에 딜리버리가 가능합니다!

'Medical Parts > Thyratron' 카테고리의 다른 글

CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
E2V 8503AG Hydrogen Thyratrons  (0) 2011.08.18
E2V 8503AF Hydrogen Thyratron(사이렉트론)  (0) 2010.12.24
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
TAG CX1140, CX1140LD, CX1140LE, Thyratron
Trackback 0 : Comment 0

댓글을 달아 주세요

Medical Parts/Thyratron 2011. 8. 18. 13:39

E2V 8503AG Hydrogen Thyratrons



ABRIDGED DATA

Flange mounted ruggedised hydrogen-filled triode thyratron, positive grid, for pulse operation.
A hydrogen reservoir is incorporated.

Peak output power

2.0

MW max

Peak forward anode voltage

20

kVmax

Peak anode current

325

A max

Average anode current

500

A max

Anode heating factor

3.9 x 109 VApps

max

Electrical

Cathode
(connected internally  to mid-point of heater)

oxide coated

Heater voltage

6.3 ± 7.5%

V

Heater current

10.6

A

Tube heating time (minimum)

3.0

min

Mechanical

Seated height

168.35 mm (6.628 inches) max

Clearance required below mounting flange

31.75 mm (1.250 inch) min

Overall diameter (excluding mounting flange)

65.1 mm (2.563 inches) max

Net weight

1 1/2 pounds (0.7 kg) approx

Mounting position

any

Tube connections

see outline

Top cap

BS448-CT3

Cooling

natural





OUTLINE(All dimensions without limits are nominal)

선형가속기에 들어가는 싸이렉트론입니다.
최신모델로 8503AF를 대처하는 신형모델입니다.

'Medical Parts > Thyratron' 카테고리의 다른 글

CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
E2V 8503AG Hydrogen Thyratrons  (0) 2011.08.18
E2V 8503AF Hydrogen Thyratron(사이렉트론)  (0) 2010.12.24
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
TAG 8503AF, 8503AG, Thyratron, 선형가속기, 싸이렉트론
Trackback 0 : Comment 0

댓글을 달아 주세요

Medical Parts/Thyratron 2010. 12. 24. 15:18

E2V 8503AF Hydrogen Thyratron(사이렉트론)

ABRIDGED DATA
Flange mounted hydrogen-filled triode thyratron, positive grid, for pulse operation. A hydrogen reservoir is incorporated. The tube is ruggedised to meet the requirements of airborne
applications. Environmental tests applied to the tube comply with those of the CV6022 specification and include linear acceleration at 12 g, and vibration at 1/4 g minimum
acceleration and 150 Hz frequency or at the frequency of maximum resonance in the range between 10 and 150 Hz.

Peak forward anode voltage . . . . . . 20 kVmax
Peak anode current . . . . . . . . 325 Amax
Average anode current . . . . . . . 500 mAmax
Anode heating factor . . . . . . 3.9x109 VApps max
Peak output power . . . . . . . . . 2.0 MWmax

GENERAL
Electrical
Cathode (connected internallyto one end of heater) . . . . . . . . oxide coated
Heater voltage . . . . . . . . . 6.3+ 7.5% V
Heater current . . . . . . . . . . . 10.6 A
Tube heating time (minimum) . . . . . . 3.0 min

Mechanical
Seated height . . . . . 168.35 mm (6.628 inches) max
Clearance required below
mounting flange . . . . . 31.75 mm (1.250 inch) min
Overall diameter (excludingmounting flange) . . . . 65.1 mm (2.563 inches) max
Net weight . . . . . . . . 340g(12ounces) approx
Mounting position . . . . . . . . . . . . . any
Tube connections . . . . . . . . . . . seeoutline
Topcap . . . . . . . . . . . . . BS448-CT3
Top cap connector . . . . . . . . . . . . MA359
Cooling . . . . . . . . . . . . . . . natural

사용되는 선형가속기(Linac) 모델
- Varian Clinac 6EX
- Varian Clinac 6-100C
- Varian Clinac 600C
- Varian Clinac 600CD
- Varian Clinac 600SR
- Varian Clinac 1800C
- Varian Clinac 2100C
- Varian Clinac 2300C
- Varian Clinac 21EX/23EX

'Medical Parts > Thyratron' 카테고리의 다른 글

CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
E2V 8503AG Hydrogen Thyratrons  (0) 2011.08.18
E2V 8503AF Hydrogen Thyratron(사이렉트론)  (0) 2010.12.24
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
TAG 8503AF, clinac, E2V, Thyratron, Varian, 마그네트론, 베리안, 사이렉트론
Trackback 0 : Comment 0

댓글을 달아 주세요
