MG5264

Marine Radar Magnetron Corss References List Radar Magnetron Corss References List Equivalent Type Request Type MG5435 2J55 MG5289 2J70A MG5267 2J70B 9M31 9M31 9M40 9M40 9M65 9M502/E3526 9M72 9M72 M1437A M1437A MG5264 9M72 or M1454 MG5256 M1310 MG5222 M1311L MG5239 M1311L M5187F M1325L MG5424 M1458A M1461 M1461 M1489 M1489 MG5223 M1555 MG5218 M1568B MG5424 M1568B MG5437 M1568B MG5388 MAF1421B MG5388C MAF1421BN MG5353 MAF1452B MG4006 MAF156.. 더보기
E2V Magnetron List Part No. Frequency (MHz) Peak Power (kW) Peak Anode Voltage (kV) Peak Anode Current (A) MG5315 3040 - 3060 12 5.8 5 MG5223F 3040 - 3060 30 8 8 MG5267 3025 - 3075 56 9 15 MG5240 3025 - 3075 60 9.3 15 MG5353 9380 - 9440 1.5 2 2 MG4004 9380 - 9440 4 3.7 3 MG5328A 9415 - 9475 4 3.7 3 MG5238B 9415 - 9475 4 3.7 3 MG5243 9415 - 9475 4 3.7 3 MG5248 9380 - 9440 4 3.7 3 MG5251 9380 - 9440 4 3.7 3 MG5388 9.. 더보기

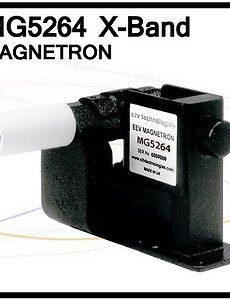

MG5264 X-Band Magnetron ABRIDGED DATA Fixed frequency pulse magnetron. Operating frequency 9410 ± 30 MHz Typical peak output power 25 kW Magnet integral Out put No.16 waveguide (22.86 x 10.16 mm internal) Coupler UG-40B/U (NATO S.N. 5985-99-083-0051) Electrical Mechanical Cathode indirectly heated Overall dimensions see outline Heater voltage (see note 1) 6.3 V Netweight 1.5 kg approx Heater current at 6.3V 0.55 A Moun.. 더보기
RF Receivers Parts List(RF 리시버) E2V Part No. Frequency (MHz) MDS (dBm typical) Noise figure (dB max) Power supplies B3IM16161 9.3 - 9.5 -100 4.7 +15, +5, -15 4 bandwidths, perfomance monitoring, AFC B3IM16171 9.1 - 9.3 -100 4.7 +15, +5, -5.2 Frequency variant of B3IM1616 더보기
Noise generators Parts List(노이즈 제너레이터) E2V Part No. Frequency (MHz) ENR (dB max) Incident power pulsed, 1µs (kW max) Power supplies B3NG1639 8.8 - 9 15 60 +21 V, 0 - 25 mA Waveguide (WG16) cal. frequency 8900 GHz B3NG1641 9.3 - 9.5 15 60 +21 V, 0 - 25 mA Waveguide (WG16), cal. frequency 9.375 GHz B3NG1642 9.3 - 9.5 15 60 +21 V, 0 - 25 mA Waveguide (WG16), cal. frequency 9.410 GHz B3NG1004 3000 - 3100 15 60 +24 V, 0 - 30 mA Waveguide .. 더보기
Front ends Parts List(프론트엔드) E2V Part No. Frequency (MHz) Gain (dB min) Noise figure (dB max) Power supplies B7RX1001 3.02 - 3.08 6 3 +12 V, Vr 4 - 24 V IF output BNC female, filtered power supplies B7RX1002 3.02 - 3.08 6 3 +12 V, Vt 4-24 V Feedthrough pin connectors B7RX1008 3.02 - 3.08 6 3 +12 V, Vt 4-24 V IF output BNC female, RF input filter B3RX1612 9.3 - 9.5 2.5 3.5 +5 V, Vt 4-24 V PCB edge connector B3RX1613 9.36 - 9.. 더보기
Circulators Parts List(서큘레이터) e2v technologies manufacture Ferrite Devices operation from 350 MHz to 120 GHz, for a wide variety of applications from low cost marine radar to state-of-the-art military devices. Standard units are available in regular waveguide sizes and some special sizes. e2v technologies offer circulators and isolators as stand-alone units and also as part of an integrated microwave package. They all come w.. 더보기
Limiters Parts List(리미터) E2V Part No. Frequency (MHz) Peak Power (kW) STC Attenuation (dB) Length (mm) B3LT1612 9300 - 9500 10 35 B3LT1008 3020 - 3080 30 30 55 B3LT1014B 3020 - 3080 30 112 B3LT1014 3020 - 3080 30 74 BS169 3030 - 3070 25 32.9 B6LT1069 3030 - 3070 25 32.9 B3LT16104 8800 - 9000 30 44 B3LT16124 8800 - 9000 30 30 44 B3LT1610 9300 - 9500 10 35 B3LT1668 9360 - 9460 25 25 35 B3LT16114 9300 - 9500 50 60 B3LT1018.. 더보기
