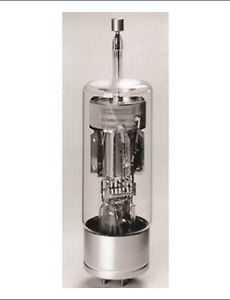

Thyratron4 CX1551 Thyratron ABRIDGED DATA Deuterium-filled tetrode thyratron, featuring low jitter and low anode delay time drift. Suitable for use at high pulse repetition rates, in parallel for switching higher powers, or for switching long pulses. A reservoir operating from the cathode heater supply is incorporated. The tube is flange mounted with flexible lead connections. Peak output power 16.5 MW max Peak forward ano.. 2012. 6. 15. E2V CX1140LD Hydrogen Thyratrons ABRIDGED DATA Deuterium-filled, fast recovery, tetrode thyratron, specifically designed for operation under medical linac conditions. A reservoir operating from the cathode heater supply is incorporated. Peak forward anode voltage . . . . . . 33 kVmax Peak anode current . . . . . . . . 1000 A max Average anode current: continuous operation . . . . . . . . 1.25 A max intermittent operation . . . .. 2011. 9. 5. E2V 8503AG Hydrogen Thyratrons ABRIDGED DATA Flange mounted ruggedised hydrogen-filled triode thyratron, positive grid, for pulse operation. A hydrogen reservoir is incorporated. Peak output power 2.0 MW max Peak forward anode voltage 20 kVmax Peak anode current 325 A max Average anode current 500 A max Anode heating factor 3.9 x 109 VApps max Electrical Cathode (connected internally to mid-point of heater) oxide coated Heate.. 2011. 8. 18. E2V 8503AF Hydrogen Thyratron(사이렉트론) ABRIDGED DATA Flange mounted hydrogen-filled triode thyratron, positive grid, for pulse operation. A hydrogen reservoir is incorporated. The tube is ruggedised to meet the requirements of airborne applications. Environmental tests applied to the tube comply with those of the CV6022 specification and include linear acceleration at 12 g, and vibration at 1/4 g minimum acceleration and 150 Hz frequ.. 2010. 12. 24. 이전 1 다음
