Marine Radar Parts/Magnetron 2012. 6. 28. 17:52



ABRIDGED DATA

Fixed frequency pulse magnetron. It is an improved version of the
M5063/2J70B and is a direct replacement for the latter, being fully
interchangeable both mechanically and electrically
An EEV long-life cathode is incorporated in the
MG5276. The improved efficiency of of the tube results in higher peak output
power for the same input conditions as 2J70.
The rugged ceramic/metal construction of the MG5267 reduces the risk
of mechanical failure during handling and installation
compared with 2J70B.

Operating frequency

3050 ± 25

MHz

Typical peak output power

56

kW

Output

probe radiating into waveguide launching section

Magnet

integral

Launching section

not supplied

Electrical

Mechanical

Cathode

indirectly heated

Overall dimensions

see outline

Heater voltage (see note 1)

6.3

V

Netweight

1.7 kg approx

Heater current at 6.3V

1.25

A

Mounting position

any

Cathode pre-heating time
(minimum)

3.0

min

Cooling(see note 2)

natural or forced-air

Heater starting current,

peak value,
not to be exceeded

6.0

A max

A minimum clearance of 50 mm

must be maintained between
the magnetron and any magnetic materials.

NOTES

1. With no anode input power.
On the application of anode power, the heater voltage must be reduced as follows:
Mean input power Heater voltage
(W) (Vrms)

less   than   25 6.3
  25     to     62 5.3
  62     to     100 4.5
The magnetron heater must be protected against arcing by the use of a minimum
capacitance of 4000 pF shunted across
the heater directly at the input terminals; in some cases a capacitance as high as 2 mF may be necessary depending
on the equipment design. For further details see the Magnetron Preamble.

2. The anode temperature must be kept below the limit specified by means of a suitable flow of air over the anode body.



OUTLINE (All dimensions without limits are nominal)

'Marine Radar Parts > Magnetron' 카테고리의 다른 글

MG4004 X-Band Magnetron  (0) 2012.06.28
MG4010 X-Band Magnetron  (0) 2012.06.28
MG5267 S-Band Magnetron  (0) 2012.06.28
MG5240 S-Band Magnetron  (0) 2012.06.28
MG5240F S-Band Magnetron  (0) 2012.06.28
MG5315 S-Band Magnetron  (0) 2012.06.28
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

Marine Radar Parts/Magnetron 2012. 6. 28. 17:41



ABRIDGED DATA

Fixed frequency pulse magnetron.

Operating frequency

3050 ± 25

MHz

Typical peak output power

60

kW

Magnet

integral

Coupler

mates with NATO S.N. 5985-99-083-0058

Electrical

Cathode

indirectly heated

Heater voltage (see note 1)

6.3

V

Heater current at 6.3V

1.25

A

Cathode pre-heating time
(minimum)

3.0

min

Heater starting current, peak value,
not to be exceeded

6.0

A max

Mechanical

Overall dimensions

see outline

Netweight

2.1 kg approx

Mounting position

any

Cooling (see note 2)

forced-air

A minimum clearance of 25 mm must be maintained between
the magnetron and any magnetic materials.



NOTES

1. With no anode input power.
  On the application of anode power, the heater voltage must be reduced as follows:

  where Pi = mean input power in watts.

  The magnetron heater must be protected against arcing by the use of a minimum
capacitance of 4000 pF

  shunted across the heater directly at the input terminals; in some cases a capacitance as high as 2 mF

  may be necessary depending on the equipment design. For further details see the Magnetron Preamble.



2. The anode temperature must be kept below the limit specified by means of a suitable flow of air over

  the anode body.



OUTLINE DIMENSIONS

Outline Notes

Positional tolerance of holes 0.4 mm diameter with respect to waveguide.

'Marine Radar Parts > Magnetron' 카테고리의 다른 글

MG4010 X-Band Magnetron  (0) 2012.06.28
MG5267 S-Band Magnetron  (0) 2012.06.28
MG5240 S-Band Magnetron  (0) 2012.06.28
MG5240F S-Band Magnetron  (0) 2012.06.28
MG5315 S-Band Magnetron  (0) 2012.06.28
MG5314 S-Band Magnetron  (0) 2012.06.28
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

Marine Radar Parts/Magnetron 2012. 6. 28. 17:34



ABRIDGED DATA

Fixed frequency pulse magnetron.

Operating frequency

3050 ± 25

MHz

Typical peak output power

60

kW

Magnet

integral

Coupler

mates with NATO S.N. 5985-99-083-0058

Electrical

Cathode

indirectly heated

Heater voltage (see note 1)

6.3

V

Heater current at 6.3V

1.25

A

Cathode pre-heating time
(minimum)

3.0

min

Heater starting current, peak value,
not to be exceeded

6.0

A max

Mechanical

Overall dimensions

see outline

Netweight

2.1 kg approx

Mounting position

any

Cooling (see note 2)

forced-air

A minimum clearance of 25 mm must be maintained between
the magnetron and any magnetic materials.



NOTES

1. With no anode input power.
  On the application of anode power, the heater voltage must be reduced as follows:

  where Pi = mean input power in watts.

  The magnetron heater must be protected against arcing by the use of a minimum
capacitance of 4000 pF

  shunted across the heater directly at the input terminals; in some cases a capacitance as high as 2 mF

  may be necessary depending on the equipment design. For further details see the Magnetron Preamble.



2. The anode temperature must be kept below the limit specified by means of a suitable flow of air over

  the anode body.



OUTLINE DIMENSIONS

Outline Notes

Positional tolerance of holes 0.4 mm diameter with respect to waveguide.

'Marine Radar Parts > Magnetron' 카테고리의 다른 글

MG5267 S-Band Magnetron  (0) 2012.06.28
MG5240 S-Band Magnetron  (0) 2012.06.28
MG5240F S-Band Magnetron  (0) 2012.06.28
MG5315 S-Band Magnetron  (0) 2012.06.28
MG5314 S-Band Magnetron  (0) 2012.06.28
M5199 X-Band Magnetron  (0) 2012.06.28
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

Marine Radar Parts/Magnetron 2012. 6. 28. 17:21



ABRIDGED DATA

Compact, rugged, lightweight, fixed frequency pulse magnetron.

Operating frequency

3050 ± 10

MHz

Typical peak output power

12

kW

Magnet integral

Out put

No.10 waveguide (2.840 x 1.340 inch internal)

Coupler

mates with NATO S.N. 5985-99-083-0058

Electrical

Mechanical

Cathode

indirectly heated

Overall dimensions

see outline

Heater voltage (see note 1)

6.3

V

Netweight

1.0 kg approx

Heater current at 6.3V

0.75

A

Mounting position

any

Cathode pre-heating time
(minimum)(see note 2)

60

s

Cooling

natural or conduction

A minimum clearance of 25mm must be maintained between
the magnetron and any magnetic materials.

NOTES

1. No reduction of heater voltage is required at any value of mean input power. For optimum

  performance a value within the specified ratings must be maintained.
  The magnetron heater must be protected against arcing by the use of a minimum capacitance

  of 4000 pF shunted across the heater directly at the input terminals; in some cases a capacitance

  as high as 2 mF may be necessary depending on the equipment design. For further details see the

  Magnetron Preamble.

2. For ambient temperatures above 0`C. For ambient temperatures between 0 and -55 `C, cathode

  pre-heating time is 90 seconds minimum.



OUTLINE DIMENSIONS

'Marine Radar Parts > Magnetron' 카테고리의 다른 글

MG5240 S-Band Magnetron  (0) 2012.06.28
MG5240F S-Band Magnetron  (0) 2012.06.28
MG5315 S-Band Magnetron  (0) 2012.06.28
MG5314 S-Band Magnetron  (0) 2012.06.28
M5199 X-Band Magnetron  (0) 2012.06.28
M5089 X-Band Magnetron  (0) 2012.06.28
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

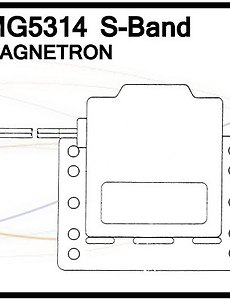

Marine Radar Parts/Magnetron 2012. 6. 28. 17:17



ABRIDGED DATA

Compact, rugged, lightweight, fixed frequency pulse magnetron.

Operating frequency

3050 ± 10

MHz

Typical peak output power

4.9

kW

Magnet integral

Out put

No.10 waveguide (2.840 x 1.340 inch internal)

Coupler

mates with NATO S.N. 5985-99-083-0058

Electrical

Mechanical

Cathode

indirectly heated

Overall dimensions

see outline

Heater voltage (see note 1)

6.3

V

Netweight

1.0 kg approx

Heater current at 6.3V

0.75

A

Mounting position

any

Cathode pre-heating time
(minimum)(see note 2)

60

s

Cooling

natural or conduction

A minimum clearance of 25mm must be maintained between
the magnetron and any magnetic materials.

NOTES

1. No reduction of heater voltage is required at any value of mean input power. For optimum

  performance a value within the specified ratings must be maintained.
  The magnetron heater must be protected against arcing by the use of a minimum capacitance

  of 4000 pF shunted across the heater directly at the input terminals; in some cases a capacitance

  as high as 2 mF may be necessary depending on the equipment design. For further details see the

  Magnetron Preamble.

2. For ambient temperatures above 0`C. For ambient temperatures between 0 and -55 `C, cathode

  pre-heating time is 90 seconds minimum.



OUTLINE DIMENSIONS

'Marine Radar Parts > Magnetron' 카테고리의 다른 글

MG5240F S-Band Magnetron  (0) 2012.06.28
MG5315 S-Band Magnetron  (0) 2012.06.28
MG5314 S-Band Magnetron  (0) 2012.06.28
M5199 X-Band Magnetron  (0) 2012.06.28
M5089 X-Band Magnetron  (0) 2012.06.28
MG5494 X-Band Magnetron  (0) 2012.06.28
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

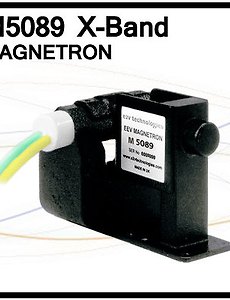

Marine Radar Parts/Magnetron 2012. 6. 28. 17:09



ABRIDGED DATA

Fixed frequency pulse magnetron.
Direct replacement for the M5022, being mechanically and electrically
interchangeable and tested to the same electrical specification.
Under most conditions it offers enhanced operating life.

Operating frequency

9445 ± 30

MHz

Typical peak output power

30

kW

Output

no.16 waveguide

(22.86 x 10.16 mm internal)

Magnet

integral

Coupler

UG-40B/U (NATO S.N. 5985-99-083-0051)

Electrical

Mechanical

Cathode

indirectly heated

Overall dimensions

see outline

Heater voltage (see note 1)

6.3

V

Netweight

1.5 kg approx

Heater current at 6.3V

0.55

A

Mounting position

any

Cathode pre-heating time
(minimum)
(see note 2)

60

s

Cooling

natural or forced-air

Heater starting current, peak value,
not to be exceeded

3.0

A max

A minimum clearance of 50 mm

must be maintained between
the magnetron and any magnetic materials.

Notes

1. With no anode input power. For average values of pulse input power greater than
40 W, the heater voltage must be reduced within 3 seconds after the application of
h.t. according to the following schedule:
Vh = 0.08 (110 - Pi) volts
where Pi = average input power in watts.
The magnetron heater must be protected against arcing by the use of a minimum
capacitance of 4000 pF shunted across the heater directly at the input terminals;
in some cases a capacitance as high as 2 mF may be necessary depending
on the equipment design. For further details see the Magnetron Preamble.

2. For ambient temperatures above 0℃. For ambient temperatures between 0 and
-55 ℃ the cathode pre-heating time is 90 seconds.

OUTLINE (All dimensions without limits are nominal)

Outline Notes
1. Anode temperature measured at this point. Paint should be removed from this point before temperature
measurement is made.
2. Reference plane B passes through the centres of the two holes of the mounting plate as shown and is
perpendicular to reference plane A.
3. Reference plane C intersects plane B at the centre of the mounting plate hole as shown and is mutually
perpendicular to reference planes A and B.
4. With surface A resting on a flat surface plate, a feeler gauge 0.51 mm thick and 3.18 mm wide will not
enter more than 3.18 mm at any point.
5. The axis of the heater lead protector will be within 58 of a normal to reference plane C.
6. Surface A and interior surfaces of the waveguide will be plated with 1.55 mg/cm2 of gold or 4.65 mg/cm2
of silver, but will not be plated if the parts are made of monel or equivalent corrosion resistant materials.
All other metal surfaces will be painted with heat resistant paint or otherwise treated to prevent corrosion.
7. The clearance between the inside surface of the protector and the 9.53 mm diameter cylindrical surface
of the standard single contact miniature bayonet lamp base (B.S.52 (1952) Type BA9s/14)
will not be less than 3.18 mm.
8. The position of the waveguide hole is not specified on this drawing since tubes are tested and used with
coupler UG-40B/U (NATO S.N. 5985-99-083-0051).
9. The centre of this hole will lie within 0.102 mm of reference plane C.
10. These holes will lie within 0.127 mm of the indicated centres. A cylinder of 8.38 mm diameter and centred
on these holes will clear the side of the magnet.
11. Recommended direction of air flow.
12. The north seeking pole of the magnet will be adjacent to the cathode sidearm.

'Marine Radar Parts > Magnetron' 카테고리의 다른 글

MG5315 S-Band Magnetron  (0) 2012.06.28
MG5314 S-Band Magnetron  (0) 2012.06.28
M5199 X-Band Magnetron  (0) 2012.06.28
M5089 X-Band Magnetron  (0) 2012.06.28
MG5494 X-Band Magnetron  (0) 2012.06.28
MG5459 X-Band Magnetron  (0) 2012.06.28
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

Marine Radar Parts/Magnetron 2012. 6. 28. 16:57



ABRIDGED DATA

Fixed frequency pulse magnetron.

Operating frequency

9415 to 9460

MHz

Typical peak output power

30

kW

Output

no.16 waveguide

(22.86 x 10.16 mm internal)

Magnet

integral

Coupler

UG-40B/U (NATO S.N. 5985-99-083-0051)

Electrical

Cathode

indirectly heated

Heater voltage (see note 1)

6.3

V

Heater current at 6.3V

0.55

A

Cathode pre-heating time
(minimum)
(see note 2)

60

s

Heater starting current, peak value,
not to be exceeded

3.0

A max

Mechanical

Overall dimensions

see outline

Netweight

1.5 kg approx

Mounting position

any

Cooling

natural or forced-air

A minimum clearance of 50 mm must be maintained between
the magnetron and any magnetic materials.

Notes

1. With no anode input power. For average values of pulse input power greater than
40 W, the heater voltage must be reduced within 3 seconds after the application of
h.t. according to the following schedule:
Vh = 0.08 (110 - Pi) volts
where Pi = average input power in watts.
The magnetron heater must be protected against arcing by the use of a minimum
capacitance of 4000 pF shunted across the heater directly at the input terminals;
in some cases a capacitance as high as 2 mF may be necessary depending
on the equipment design. For further details see the Magnetron Preamble.

2. For ambient temperatures above 0℃. For ambient temperatures between 0 and
-55 ℃ the cathode pre-heating time is 90 seconds.



OUTLINE (All dimensions without limits are nominal)

Outline Notes
1. Recommended direction of air flow if required.
2. Anode temperature measured at this point.
3. With surface A resting on a flat surface plate, a feeler gauge 0.51 mm thick and 3.18 mm
wide will not enter more than 3.18 mm at any point.
4. Surface A and interior surfaces of the waveguide will be plated with 1.55 mg/cm2 of gold or
4.65 mg/cm2 of silver, but will not be plated if the parts are made of monel or equivalent corrosion
resistantmaterials.
All other metal surfaces will be painted with heat resistant paint or otherwise treated to prevent
corrosion.
5. Reference plane C intersects plane B at the centre of the mounting plate hole as shown and
is mutually perpendicular to reference planes A and B.
6. These holes will lie within 0.127 mm of the indicated centres. A cylinder of 8.38 mm
diameter and centred on these holes will clear the side of the magnet.
7. The position of the waveguide hole is not specified on this drawing since tubes are tested
and used with coupler UG-40B/U (NATO S.N. 5985-99-083-0051).
8. The centre of this hole will lie within 0.102 mm of reference plane C.
9. Reference plane B passes through the centres of the two holes of the mounting plate as
shown and is perpendicular to reference plane A.
10. The north seeking pole of the magnet will be adjacent to the cathode sidearm.
11. Length of flying leads measured from the centre line of the anode block.3

'Marine Radar Parts > Magnetron' 카테고리의 다른 글

MG5314 S-Band Magnetron  (0) 2012.06.28
M5199 X-Band Magnetron  (0) 2012.06.28
M5089 X-Band Magnetron  (0) 2012.06.28
MG5494 X-Band Magnetron  (0) 2012.06.28
MG5459 X-Band Magnetron  (0) 2012.06.28
MG5437 X-Band Magnetron  (0) 2012.06.28
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

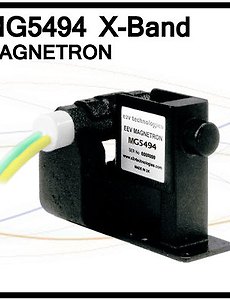

Marine Radar Parts/Magnetron 2012. 6. 28. 16:40



ABRIDGED DATA

Fixed frequency pulse magnetron.

Operating frequency

8900 ± 30

MHz

Typical peak output power

25

kW

Output

no.16 waveguide (22.86 x 10.16 mm internal)

Magnet

integral

Coupler

UG-40B/U (NATO S.N. 5985-99-083-0051)

Electrical

Cathode

indirectly heated

Heater voltage (see note 1)

6.3

V

Heater current at 6.3V

0.55

A

Cathode pre-heating time
(minimum)
(see note 2)

60

s

Heater starting current, peak value,
not to be exceeded

3.0

A max

Mechanical

Overall dimensions

see outline

Netweight

1.5 kg approx

Mounting position

any

Cooling

natural or forced-air

A minimum clearance of 50 mm must be maintained between
the magnetron and any magnetic materials.

Notes

1. With no anode input power. For average values of pulse input power greater than
40 W, the heater voltage must be reduced within 3 seconds after the application of
h.t. according to the following schedule:
Vh = 0.08 (110 - Pi) volts
where Pi = average input power in watts.
The magnetron heater must be protected against arcing by the use of a minimum
capacitance of 4000 pF shunted across the heater directly at the input terminals;
in some cases a capacitance as high as 2 mF may be necessary depending
on the equipment design. For further details see the Magnetron Preamble.

2. For ambient temperatures above 0℃. For ambient temperatures between 0 and
-55 ℃ the cathode pre-heating time is 90 seconds.

OUTLINE (All dimensions without limits are nominal)

Outline Notes
1. Recommended direction of air flow if required.
2. Anode temperature measured at this point.
3. With surface A resting on a flat surface plate, a feeler gauge 0.51 mm thick and 3.18 mm
wide will not enter more than 3.18 mm at any point.
4. Surface A and interior surfaces of the waveguide will be plated with 1.55 mg/cm2 of gold or
4.65 mg/cm2 of silver, but will not be plated if the parts are made of monel or equivalent corrosion
resistantmaterials.
All other metal surfaces will be painted with heat resistant paint or otherwise treated to prevent
corrosion.
5. Reference plane C intersects plane B at the centre of the mounting plate hole as shown and
is mutually perpendicular to reference planes A and B.
6. These holes will lie within 0.127 mm of the indicated centres. A cylinder of 8.38 mm
diameter and centred on these holes will clear the side of the magnet.
7. The position of the waveguide hole is not specified on this drawing since tubes are tested
and used with coupler UG-40B/U (NATO S.N. 5985-99-083-0051).
8. The centre of this hole will lie within 0.102 mm of reference plane C.
9. Reference plane B passes through the centres of the two holes of the mounting plate as
shown and is perpendicular to reference plane A.
10. The north seeking pole of the magnet will be adjacent to the cathode sidearm.
11. Length of flying leads measured from the centre line of the anode block.

'Marine Radar Parts > Magnetron' 카테고리의 다른 글

M5199 X-Band Magnetron  (0) 2012.06.28
M5089 X-Band Magnetron  (0) 2012.06.28
MG5494 X-Band Magnetron  (0) 2012.06.28
MG5459 X-Band Magnetron  (0) 2012.06.28
MG5437 X-Band Magnetron  (0) 2012.06.28
MG5424 X-Band Magnetron  (0) 2012.06.28
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

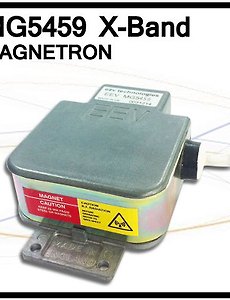

Marine Radar Parts/Magnetron 2012. 6. 28. 11:30



GENERAL DATA

Electrical

Mechanical

Operating frequency

9375 ±30

MHz

Overall dimensions

see Outline

Typical peak
output power

25

kW

Net weight

0.7 kg approx

Cathode

indirectly heated

Mounting position

any

Heater voltage
(see note 1)

6.3

V

Coupler

IEC UBR100

Heater current at 6.3V

 (see note 2)

0.5

A

Cooling

natural

Cathode pre-heating time
(minimum) (see note3)

60

s

Output

no.16 waveguide

  Input capacitance

 9.0

 pFmax

Magnet

integral

 Temperature coefficient

of frequency

 see note 4

 A minimum clearance of 25 mm must be maintained between
the magnetron and any magnetic materials

Notes

1. For optimum performance a value of 6.3 V is recommended. However, this magnetron
  will work satisfactorily within the specified limits.
  The magnetron heater must be protected against arcing by the use of a minimum
  capacitance of 4000 pF shunted across the heater directly at the input terminals;
  in some cases a capacitance as high as 2
mF may be necessary depending on the
  equipment design. For further details see the Magnetron Preamble.
2. Measured with heater voltage of 6.3 V and no anode input power, the heater
  current limits are 0.5 A minimum, 0.6 A maximum.

3. For ambient temperatures above 0 ℃. For ambient temperatures between
  0 and -55 ℃, cathode pre-heating time is 45 seconds minimum.

4. Design test only. The maximum frequency change with
  anode temperature change (after warming) is -0.25 MHz/℃.



OUTLINE DIMENSIONS

'Marine Radar Parts > Magnetron' 카테고리의 다른 글

M5089 X-Band Magnetron  (0) 2012.06.28
MG5494 X-Band Magnetron  (0) 2012.06.28
MG5459 X-Band Magnetron  (0) 2012.06.28
MG5437 X-Band Magnetron  (0) 2012.06.28
MG5424 X-Band Magnetron  (0) 2012.06.28
MG5271 X-Band Magnetron  (0) 2012.06.28
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

Marine Radar Parts/Magnetron 2012. 6. 28. 11:01



GENERAL DATA

Electrical

Mechanical

Operating frequency

9410 ±30

MHz

Overall dimensions

see Outline

Typical peak
output power

25

kW

Net weight

0.7 kg approx

Cathode

indirectly heated

Mounting position

any

Heater voltage
(see note 1)

6.3

V

Coupler

IEC UBR100

Heater current at 6.3V

 (see note 2)

0.5

A

Cooling

natural

Cathode pre-heating time
(minimum) (see note3)

60

s

Output

no.16 waveguide

  Input capacitance

 9.0

 pFmax

Magnet

integral

 Temperature coefficient

of frequency

 see note 4

 A minimum clearance of 25 mm must be maintained between
the magnetron and any magnetic materials

Notes

1. For optimum performance a value of 6.3 V is recommended. However, this magnetron
  will work satisfactorily within the specified limits.
  The magnetron heater must be protected against arcing by the use of a minimum
  capacitance of 4000 pF shunted across the heater directly at the input terminals;
  in some cases a capacitance as high as 2
mF may be necessary depending on the
  equipment design. For further details see the Magnetron Preamble.
2. Measured with heater voltage of 6.3 V and no anode input power, the heater
  current limits are 0.5 A minimum, 0.6 A maximum.

3. For ambient temperatures above 0 ℃. For ambient temperatures between
  0 and -55 ℃, cathode pre-heating time is 45 seconds minimum.

4. Design test only. The maximum frequency change with
  anode temperature change (after warming) is -0.25 MHz/℃.



* MG5436 Anode voltage (peak) = 8.0 kV
  MG5437 Anode voltage (peak) = 8.4 kV



OUTLINE DIMENSIONS

'Marine Radar Parts > Magnetron' 카테고리의 다른 글

MG5494 X-Band Magnetron  (0) 2012.06.28
MG5459 X-Band Magnetron  (0) 2012.06.28
MG5437 X-Band Magnetron  (0) 2012.06.28
MG5424 X-Band Magnetron  (0) 2012.06.28
MG5271 X-Band Magnetron  (0) 2012.06.28
MG5265 X-Band Magnetron  (0) 2012.06.28
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요
