Marine Antenna/Cellular Antenna 2011. 8. 25. 14:51

CELseaGSM1 and CELseaGSM3
The CELsea series of marine antennas for cellular GSM applications are ruggedly
designed to perform in the most demanding environments.
Both models feature copper and copper alloy internal construction.
For installation on 1”-14 mounting hardware.

CELfour
New 4-band celluler antenna covering all US, European and Asian frequencies.
Rugged design to withstand the all weather conditions.

'Marine Antenna > Cellular Antenna' 카테고리의 다른 글

CELseaGSM1 CELseaGSM3 CELfour  (0) 2011.08.25
Cellular GSM - Marine Antennas  (0) 2011.08.25
Cellular 1710/1990 and 2400Mhz - Marine Antennas  (0) 2011.08.22
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

Marine Antenna/Cellular Antenna 2011. 8. 22. 14:12

DCS1, DCS3, PCS3, DCS5, and PCS5
These antennas are designed for Personal Communications Network applications
in the 1710 to 1990 MHz band. Premium quality materials are used to prevent
galvanic corrosion. A 18 mm (0.7”) diameter fibreglass radome protects the
radiating elements from hostile environments. Radiating elements are made
of copper. The antennas can be used in any climate and withstand icing, salt
air and acid rain.

CEL21
The CEL21 is for UMTS(3G) cellular application. The CEL21 has the same rugged
design as all other AC Marine antennas.

CEL24
CEL24 is for various cellular application, as well as for Wi-Fi network.
The CEL24 has the same rugged design as all other AC Marine antennas.
Vertical Beamwidth: 12 degrees (+6/-6).

'Marine Antenna > Cellular Antenna' 카테고리의 다른 글

CELseaGSM1 CELseaGSM3 CELfour  (0) 2011.08.25
Cellular GSM - Marine Antennas  (0) 2011.08.25
Cellular 1710/1990 and 2400Mhz - Marine Antennas  (0) 2011.08.22
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

Marine Antenna/HF/SSB Antenna 2011. 8. 22. 14:02

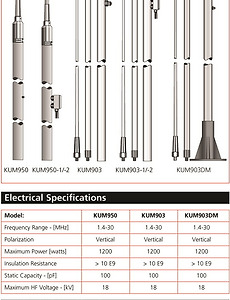

KUM903/KUM904/KUM950
The 9m HF antennas are similar in design as the 8m KUM803/KUM850 antennas, but with
an extended 1m (3.3’) length.
KUM903: 3-section for mast mounting
KUM904: 4-section for mast mounting
KUM850: 2-section for mast mounting

The KUM903 and now the new KUM904 are especially manufactured to make transportation
easier/cheaper.

KUM903-1 or KUM950-1
With connection box for use when using coaxial cable.

KUM903-2 or KUM950-2
With connection transformer box for receiving purpose only.
The transformer is recommended if the antenna is used at low frequencies
(0.15-30MHz) or when long cable feeding is necessary.

DECKMOUNT
All the different KUM903 types are now available in a deckmount version.
KUM904 can also be delivered with connection box or connection transformer
box on request.

총길이 9M로 HF SSB 용으로 사용되는 안테나 입니다.

'Marine Antenna > HF/SSB Antenna' 카테고리의 다른 글

KUM480-1 (1.4-30.0MHz)  (0) 2013.12.12
KUM480 (1.4-30.0MHz)  (0) 2013.12.12
HF / SSB Antenna KUM903 KUM950  (0) 2011.08.22
HF / SSB Marine Antennas  (0) 2011.08.19
HF / SSB KUM700 KUM701 KUM703 KUM731  (0) 2011.08.19
HF/SSB KUM600 KUM601 KUM603  (0) 2011.08.16
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

Marine Antenna/HF/SSB Antenna 2011. 8. 19. 15:22

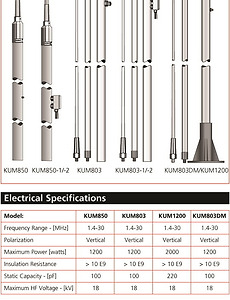

KUM803/KUM850/KUM1200
The 8m KUM850 and KUM803 are one of the most popular marine HF antennas used for
commercial and fishing applications due to the sturdy construction and excellent performance.
The KUM1200 is a rugged self-supporting antenna whip with 2000W max. power.
KUM850: 2-section for mast mounting
KUM803: 3-section for mast mounting
KUM1200: 3-section for deck mounting

KUM803-1 or KUM850-1
With connection box for use when using coaxial cable.

KUM803-2 or KUM850-2
With connection transformer box for receiving purpose only. The transformer is recommended
if the antenna is used at low frequencies (0.15-30MHz) or when long cable feeding is necessary.

DECKMOUNT
All the different KUM803 types are now also available in a deckmount version.

선박용 HF/SSB 안테나 입니다.

'Marine Antenna > HF/SSB Antenna' 카테고리의 다른 글

KUM480 (1.4-30.0MHz)  (0) 2013.12.12
HF / SSB Antenna KUM903 KUM950  (0) 2011.08.22
HF / SSB Marine Antennas  (0) 2011.08.19
HF / SSB KUM700 KUM701 KUM703 KUM731  (0) 2011.08.19
HF/SSB KUM600 KUM601 KUM603  (0) 2011.08.16
HF / SSB KUM480 KUM481 Antennas  (0) 2011.08.12
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

Marine Antenna/HF/SSB Antenna 2011. 8. 19. 15:13

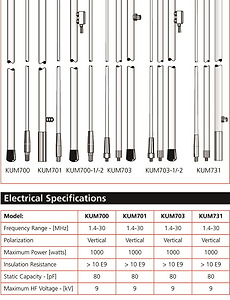

KUM700/KUM701/KUM703/KUM731
Four different 7m (22’) HF antennas. These HF/SBB antennas provide an efficient balance
between length and performance:
KUM700: 2 section for mast mounting
KUM703: 3 section for mast mounting
KUM701: 2 section for mounting directly on 1”-14 threaded mounts.
KUM731: 3 section for mounting directly on 1”-14 threaded mounts.

KUM700-1 or KUM703-1
With connection box for use when using coaxial cable.

KUM700-2 or KUM703-2
With connection transformer box for receiving purpose only.
The transformer is recommended if the antenna is used at low frequencies (0.15-30MHz) or
when long cable feeding is necessary.

KUM761
Similar to KUM701, but with extra strong/thicker dimension fibreglass.
KUM761 is also available as deckmount (similar to KUM803DM and KUM903DM).

Mounting hardware available as option:
For mast mounting: N070F, N075F, N080F, N085F and N090F (see page 26 for details)
Note: Two clamps required for each antenna.For KUM701and KUM731 a N200F upper
support is required.

The connection boxes can be purchased separately as follows:
K483F: Connection box
K493F: Connection Transformer box

선박용 HF/SSB 안테나

'Marine Antenna > HF/SSB Antenna' 카테고리의 다른 글

KUM480 (1.4-30.0MHz)  (0) 2013.12.12
HF / SSB Antenna KUM903 KUM950  (0) 2011.08.22
HF / SSB Marine Antennas  (0) 2011.08.19
HF / SSB KUM700 KUM701 KUM703 KUM731  (0) 2011.08.19
HF/SSB KUM600 KUM601 KUM603  (0) 2011.08.16
HF / SSB KUM480 KUM481 Antennas  (0) 2011.08.12
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

댓글을 달아 주세요

Marine Antenna/HF/SSB Antenna 2011. 8. 12. 18:13

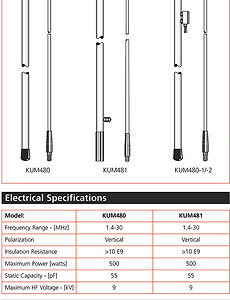

KUM480/KUM481
