Marine Radar Parts/Magnetron 2012. 6. 28. 18:01

Marine Radar Magnetron Corss References List

Radar Magnetron Corss References List

Equivalent Type Request Type
MG5435 2J55
MG5289 2J70A
MG5267 2J70B
9M31 9M31
9M40 9M40
9M65 9M502/E3526
9M72 9M72
M1437A M1437A
MG5264 9M72 or M1454
MG5256 M1310
MG5222 M1311L
MG5239 M1311L
M5187F M1325L
MG5424 M1458A
M1461 M1461
M1489 M1489
MG5223 M1555
MG5218 M1568B
MG5424 M1568B
MG5437 M1568B
MG5388 MAF1421B
MG5388C MAF1421BN
MG5353 MAF1452B
MG4006 MAF1562B
MG4010 MAF1565N
MG4004 MAF1611B
MG5251 MRF1421B
MG5238A MRF1421C
MG5233 MRF1424B
MG5234 MRF1424C
MG5238B MRFB1421C
MG5248 MSF1421B
MG5243 MSF1421C
MG5217 MSF1422B
MG5232 MSF1422B
MG5245 MSF1425A
MG5241 MSF1425B
MG5259 MSS1422A
MG5273 MVF1422B
9M602 MVF1425B
MG5257 MVF1425B
MG5255 MVS1422B
MG5244 MVS1425A
MG5258 MVS1425B

'Marine Radar Parts > Magnetron' 카테고리의 다른 글

Marine Radar Magnetron Corss References List  (0) 2012.06.28
E2V Magnetron List  (0) 2012.06.28
MG5436 X-BAND MAGNETRON  (0) 2012.06.28
MG4006 X-Band Magnetron  (0) 2012.06.28
MG4004 X-Band Magnetron  (0) 2012.06.28
MG4010 X-Band Magnetron  (0) 2012.06.28
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
TAG AEP Marine Parts, alfatronix, Alphatron Electronic Parts, antennas, b, B3LT1008, B3LT1014, B3LT1014B, B3LT1018, B3LT1023, B3LT1610, B3LT16104, B3LT16114, B3LT1612, B3LT16122, B3LT16124, B3LT16140, B3LT16144, B3LT1649, B3LT1660, B3LT1668, B3LT1669, B3LT1697, B3LT1698, B3LT1699, B6LT1069, balmar, batteries, batterijen, BS169, celwave, circulator, converters, E2V, EEV, frontend, gen 4, generation four, limiter, LT1654, M1302L, M5068, M5187, M5187F, M5199, Magnetron, marine onderdelen, marine parts, marine radar components, marine spare parts, MG4004, MG4004C/MG5388C, MG4006, MG4010, MG5089, MG5089T, MG5089T/C, MG5218, MG5222, MG5223, MG5223F, MG5230, MG5230T, MG5230T/C, MG5231T, MG5232, MG5232F, MG5233, MG5234, MG5238B, MG5239T, MG5240, MG5240F, MG5241, MG5241F, MG5242T, MG5243, MG5244, MG5245, MG5248, MG5251, MG5255, MG5256, MG5257, MG5258, MG5264, MG5265, MG5267, MG5271, MG5273, MG5315, MG5328A, MG5331, MG5353, MG5388, MG5388S, MG5389, MG5411, MG5424, MG5436, MG5437, MG5473, MG5494, MG5497T, MG5500, MG5501, MG5503, nautic monitors, noise generator, omvormers, Radar, radar parts, radar search, radar search engine, radaronderdelen, RF
Trackback 0 : Comment 0

댓글을 달아 주세요

Marine Radar Parts/Magnetron 2012. 6. 28. 18:00

E2V Magnetron List



Part No.

Frequency
(MHz)

Peak Power
(kW)

Peak Anode
Voltage
(kV)

Peak Anode
Current
(A)

MG5315

3040 - 3060

12

5.8

5

MG5223F

3040 - 3060

30

8

8

MG5267

3025 - 3075

56

9

15

MG5240

3025 - 3075

60

9.3

15

MG5353

9380 - 9440

1.5

2

2

MG4004

9380 - 9440

4

3.7

3

MG5328A

9415 - 9475

4

3.7

3

MG5238B

9415 - 9475

4

3.7

3

MG5243

9415 - 9475

4

3.7

3

MG5248

9380 - 9440

4

3.7

3

MG5251

9380 - 9440

4

3.7

3

MG5388

9380 - 9440

4

3.7

3

MG4004C/MG5388C

9380 - 9440

4

3.7

3

MG4006

9380 - 9440

6

4.5

4.5

MG5232

9380 - 9440

6

4.5

4.5

MG5232F

9380 - 9440

6

4.5

3.5

MG5255

9380 - 9440

6

4.5

3.5

MG5273

9380 - 9440

6

4.5

3.5

MG5389

9380 - 9440

6

4.5

3.5

MG5233

9380 - 9440

8

4.4

5

MG5234

9415 - 9475

8

4.4

5

MG4010

9380 - 9440

12.5

5.8

5

MG5241

9380 - 9440

12.5

5.8

5

MG5241F

9380 - 9440

12.5

5.8

5

MG5244

9345 - 9405

12.5

5.8

5

MG5245

9345 - 9405

12.5

5.8

5

MG5256

9345 - 9405

12.5

5.8

5

MG5257

9380 - 9440

12.5

5.8

5

MG5258

9380 - 9440

12.5

5.8

5

MG5473

9380 - 9440

12.5

5.8

5

M5068

9620 - 9680

25

8.2

8

M5089T

9415 - 9460

25

8

8

M5187

9380 - 9440

25

8.2

8

M5187F

9380 - 9440

25

8.2

8

MG5331

9380 - 9440

4

3.7

3

MG5218

9380 - 9440

25

8.4

8

MG5222

9345 - 9405

25

8.2

8

MG5230T

9140 - 9200

25

8

8

MG5231T

9460 - 9520

25

8

8

MG5239T

9345 - 9405

25

8

8

MG5242T

9380 - 9440

25

8

8

MG5264

9380 - 9440

25

8.2

8

MG5271

9345 - 9405

25

8.4

8

MG5424

9380 - 9440

25

8.2

8

MG5436

9380 - 9440

25

8.2

8

MG5437

9380 - 9440

25

8.2

8

MG5494

8870 - 8930

25

8.2

8

M5199

9415 - 9475

30

8.3

9

MG5265

9455 - 9495

30

8.3

9

MG5388S

9380 - 9440

4

3.7

3

MG5411

9220 - 9280

25

8.2

8

MG5497T

9210 - 9240

25

8

8

MG5500

3010 - 3030

30

8

8

MG5501

3070 - 3090

30

8

8

MG5503

9470 - 9490

25

8.2

8

MG5223

3040 - 3060

30

8

8

MG5240F

3025 - 3075

62

9.3

15


'Marine Radar Parts > Magnetron' 카테고리의 다른 글

Marine Radar Magnetron Corss References List  (0) 2012.06.28
E2V Magnetron List  (0) 2012.06.28
MG5436 X-BAND MAGNETRON  (0) 2012.06.28
MG4006 X-Band Magnetron  (0) 2012.06.28
MG4004 X-Band Magnetron  (0) 2012.06.28
MG4010 X-Band Magnetron  (0) 2012.06.28
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
TAG AEP Marine Parts, alfatronix, Alphatron Electronic Parts, antennas, b, B3LT1008, B3LT1014, B3LT1014B, B3LT1018, B3LT1023, B3LT1610, B3LT16104, B3LT16114, B3LT1612, B3LT16122, B3LT16124, B3LT16140, B3LT16144, B3LT1649, B3LT1660, B3LT1668, B3LT1669, B3LT1697, B3LT1698, B3LT1699, B6LT1069, balmar, batteries, batterijen, BS169, celwave, circulator, converters, E2V, EEV, frontend, gen 4, generation four, limiter, LT1654, M1302L, M5068, M5187, M5187F, M5199, Magnetron, marine onderdelen, marine parts, marine radar components, marine spare parts, MG4004, MG4004C/MG5388C, MG4006, MG4010, MG5089, MG5089T, MG5089T/C, MG5218, MG5222, MG5223, MG5223F, MG5230, MG5230T, MG5230T/C, MG5231T, MG5232, MG5232F, MG5233, MG5234, MG5238B, MG5239T, MG5240, MG5240F, MG5241, MG5241F, MG5242T, MG5243, MG5244, MG5245, MG5248, MG5251, MG5255, MG5256, MG5257, MG5258, MG5264, MG5265, MG5267, MG5271, MG5273, MG5315, MG5328A, MG5331, MG5353, MG5388, MG5388S, MG5389, MG5411, MG5424, MG5436, MG5437, MG5473, MG5494, MG5497T, MG5500, MG5501, MG5503, nautic monitors, noise generator, omvormers, Radar, radar parts, radar search, radar search engine, radaronderdelen, RF
Trackback 0 : Comment 0

댓글을 달아 주세요

Marine Radar Parts/Magnetron 2012. 6. 27. 14:24

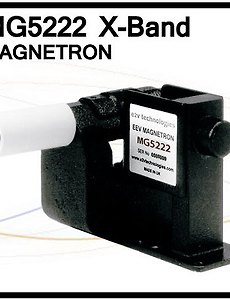

MG5222 X-Band Magnetron



ABRIDGED DATA

Fixed frequency pulse magnetron. Direct replacement for the M5039, being mechanically and

electrically interchangeable and tested to the same electrical specification.

 Under most conditions it offers enhanced operating life.

Operating frequency

9375 ± 30

MHz

Typical peak output power

25

kW

Magnet integral

Out put

No.16 waveguide(0.900x0.400 inch internal)

Coupler

IEC UBR100

Electrical

Mechanical

Cathode

indirectly heated

Overall dimensions

see outline

Heater voltage (see note 1)

6.3

V

Netweight

1.5 kg approx

Heater current at 6.3V

0.55

A

Mounting position

any

Cathode pre-heating time
(minimum)(see note 2)

60

s

Cooling

natural or forced-air

Heater starting current,

peak value,
not to be exceeded

3.0

A max

A minimum clearance of 1 inch must be maintained between the magnetron and any magnetic materials.



NOTES

1. With no anode input power. For average values of pulse input power greater than
40 W, the heater voltage must be reduced within 3 seconds after the application of
h.t. according to the following schedule:
Vh = 0.08 (110 - Pi) volts
where Pi = average input power in watts.
The magnetron heater must be protected against arcing by the use of a minimum
capacitance of 4000 pF shunted across the heater directly at the input terminals;
in some cases a capacitance as high as 2 mF may be necessary depending
on the equipment design. For further details see the Magnetron Preamble.

2. For ambient temperatures above 0℃. For ambient temperatures between 0 and
-55 ℃ the cathode pre-heating time is 90 seconds.



OUTLINE DIMENSIONS

Outline Notes
1. Anode temperature measured at this point. Paint should be removed from this point before temperature
measurement is made.
2. Reference plane B passes through the centres of the two holes of the mounting plate as shown and is
perpendicular to reference plane A.
3. Reference plane C intersects plane B at the centre of the mounting plate hole as shown and is mutually
perpendicular to reference planes A and B.
4. With surface A resting on a flat surface plate, a feeler gauge 0.51 mm thick and 3.18 mm wide will not
enter more than 3.18 mm at any point.
5. The axis of the heater lead protector will be within 58 of a normal to reference plane C.
6. Surface A and interior surfaces of the waveguide will be plated with 1.55 mg/cm2 of gold or 4.65 mg/cm2
of silver, but will not be plated if the parts are made of monel or equivalent corrosion resistant materials.
All other metal surfaces will be painted with heat resistant paint or otherwise treated to prevent corrosion.
7. The clearance between the inside surface of the protector and the 9.53 mm diameter cylindrical surface
of the standard single contact miniature bayonet lamp base (B.S.52 (1952) Type BA9s/14)
will not be less than 3.18 mm.
8. The position of the waveguide hole is not specified on this drawing since tubes are tested and used with
coupler UG-40B/U (NATO S.N. 5985-99-083-0051).
9. The centre of this hole will lie within 0.102 mm of reference plane C.
10. These holes will lie within 0.127 mm of the indicated centres. A cylinder of 8.38 mm diameter and centred
on these holes will clear the side of the magnet.
11. Recommended direction of air flow.
12. The north seeking pole of the magnet will be adjacent to the cathode sidearm.

저작자표시비영리변경금지

'Marine Radar Parts > Magnetron' 카테고리의 다른 글

MG5231T X-Band Magnetron  (0) 2012.06.27
MG5230T X-Band Magnetron  (0) 2012.06.27
MG5222 X-Band Magnetron  (0) 2012.06.27
MG5218 X-Band Magnetron  (0) 2012.06.27
MG5473 X-band Magnetron  (0) 2012.06.27
MG5258 X-Band Magnetron  (0) 2012.06.27
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
TAG 5222, E2V, Magnetron, MG5222
Trackback 0 : Comment 0

댓글을 달아 주세요

Marine Radar Parts/RF Receiver 2011. 8. 16. 09:59

RF Receivers Parts List(RF 리시버)

E2V Part No. Frequency
(MHz)		 MDS
(dBm typical)		 Noise
figure
(dB max)		 Power supplies
B3IM16161 9.3 - 9.5 -100 4.7 +15, +5, -15
4 bandwidths, perfomance monitoring, AFC
B3IM16171 9.1 - 9.3 -100 4.7 +15, +5, -5.2
Frequency variant of B3IM1616
