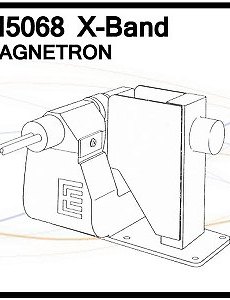

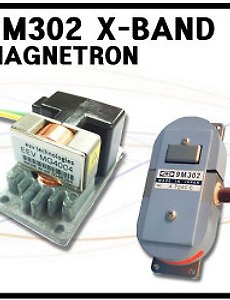

Marine Radar Parts/Magnetron53 M5068 X-Band Magnetron ABRIDGED DATA Fixed frequency pulse magnetron. Operating frequency 9620 to 9680 MHz Typical peak output power 25 kW Output no.16 waveguide (22.86 x 10.16 mm internal) Magnet integral Coupler UG-40B/U (NATO S.N. 5985-99-083-0051) Electrical Cathode indirectly heated Heater voltage (see note 1) 6.3 V Heater current at 6.3V 0.55 A Cathode pre-heating time (minimum)(see note 2) 60 s Heater starting .. 2012. 6. 27. 9M302(->MG4004) X-Band Magnetron Magnetron to replace E2V Magnetron 9M302 4 kW MG4004 4 kW 9M502 6 kW MG4006 6 kW 9M602 12.5 kW MG4010 12.5 kW 2012. 6. 27. MG5233 X-Band Magnetron ABRIDGED DATA Lightweight, fixed frequency pulse magnetron. It is electrically and mechanically interchangeable with M5196F. Operating frequency 9410 ± 30 MHz Typical peak output power 8.0 kW Magnet integral Out put No.16 waveguide(0.900x0.400 inch internal) Coupler IEC UBR100 Electrical Mechanical Cathode indirectly heated Overall dimensions see outline Heater voltage (see note 1) 6.3 V Netweig.. 2012. 6. 27. MG5244 X-Band Magnetron ABRIDGED DATA rugged, lightweight, fixed frequency pulse magnetron, Operating frequency 9375 ± 30 MHz Typical peak output power 12.5 kW Magnet integral Out put No.16 waveguide(0.900x0.400 inch internal) Coupler IEC UBR100 Electrical Mechanical Cathode indirectly heated Overall dimensions see outline Heater voltage (see note 1) 6.3 V Netweight 0.7 kg approx Heater current at 6.3V 0.5 A Mounting p.. 2012. 6. 27. MG5241F X-Band Magnetron ABRIDGED DATA Compact, rugged, lightweight, fixed frequency pulse magnetron withvery low levels of unwanted emissions. Operating frequency 9410 ± 30 MHz Typical peak output power 10.0 kW Magnet integral Out put No.16 waveguide(0.900x0.400 inch internal) Coupler IEC UBR100 Electrical Mechanical Cathode indirectly heated Overall dimensions see outline Heater voltage (see note 1) 6.3 V Netweight 0... 2012. 6. 27. MG5245 X-Band Magnetron ABRIDGED DATA Compact, rugged, lightweight, fixed frequency pulse magnetron Operating frequency 9375 ± 30 MHz Typical peak output power 12.5 kW Magnet integral Out put No.16 waveguide(0.900x0.400 inch internal) Coupler IEC UBR100 Electrical Mechanical Cathode indirectly heated Overall dimensions see outline Heater voltage (see note 1) 6.3 V Netweight 0.7 kg approx Heater current at 6.3V 0.5 A Mo.. 2012. 6. 26. MG5273 X-Band Magnetron ABRIDGED DATA rugged, lightweight, fixed frequency pulse magnetron, Operating frequency 9410 ± 30 MHz Typical peak output power 6.0 kW Magnet integral Out put No.16 waveguide(0.900x0.400 inch internal) Coupler IEC UBR100 Electrical Mechanical Cathode indirectly heated Overall dimensions see outline Heater voltage (see note 1) 6.3 V Netweight 0.7 kg approx Heater current at 6.3V 0.5 A Mounting po.. 2012. 6. 26. MG5241 X-Band Magnetron ABRIDGED DATA Compact, rugged, lightweight, fixed frequency pulse magnetron withvery low levels of unwanted emissions. Operating frequency 9410 ± 30 MHz Typical peak output power 12.5 kW Magnet integral Out put No.16 waveguide(0.900x0.400 inch internal) Coupler IEC UBR100 Electrical Mechanical Cathode indirectly heated Overall dimensions see outline Heater voltage (see note 1) 6.3 V Netweight 0... 2012. 6. 26. MG5389 X-Band Magnetron . Electrical Mechanical Operating frequency 9410 ±30 MHz Overall dimensions see Outline Typical peak output power 6.0 kW Net weight 0.5 kg approx Cathode indirectly heated Mounting position any Heater voltage (see note 1) 6.3 V Coupler IEC UBR100 Heater current at 6.3V (see note 2) 0.55 A Cooling natural Cathode pre-heating time (minimum)(see note3) 60 s Output no.16waveguide Cold impedance see .. 2012. 6. 26. 이전 1 2 3 4 5 6 다음
