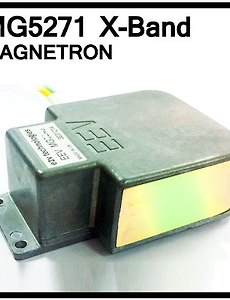

Marine Radar Parts/Magnetron53 MG5314 S-Band Magnetron ABRIDGED DATA Compact, rugged, lightweight, fixed frequency pulse magnetron. Operating frequency 3050 ± 10 MHz Typical peak output power 4.9 kW Magnet integral Out put No.10 waveguide (2.840 x 1.340 inch internal) Coupler mates with NATO S.N. 5985-99-083-0058 Electrical Mechanical Cathode indirectly heated Overall dimensions see outline Heater voltage (see note 1) 6.3 V Netweight 1.0 kg approx H.. 2012. 6. 28. M5199 X-Band Magnetron ABRIDGED DATA Fixed frequency pulse magnetron. Direct replacement for the M5022, being mechanically and electrically interchangeable and tested to the same electrical specification. Under most conditions it offers enhanced operating life. Operating frequency 9445 ± 30 MHz Typical peak output power 30 kW Output no.16 waveguide (22.86 x 10.16 mm internal) Magnet integral Coupler UG-40B/U (NATO S.N.. 2012. 6. 28. M5089 X-Band Magnetron ABRIDGED DATA Fixed frequency pulse magnetron. Operating frequency 9415 to 9460 MHz Typical peak output power 30 kW Output no.16 waveguide (22.86 x 10.16 mm internal) Magnet integral Coupler UG-40B/U (NATO S.N. 5985-99-083-0051) Electrical Cathode indirectly heated Heater voltage (see note 1) 6.3 V Heater current at 6.3V 0.55 A Cathode pre-heating time (minimum)(see note 2) 60 s Heater starting .. 2012. 6. 28. MG5494 X-Band Magnetron ABRIDGED DATA Fixed frequency pulse magnetron. Operating frequency 8900 ± 30 MHz Typical peak output power 25 kW Output no.16 waveguide (22.86 x 10.16 mm internal) Magnet integral Coupler UG-40B/U (NATO S.N. 5985-99-083-0051) Electrical Cathode indirectly heated Heater voltage (see note 1) 6.3 V Heater current at 6.3V 0.55 A Cathode pre-heating time (minimum)(see note 2) 60 s Heater starting cur.. 2012. 6. 28. MG5459 X-Band Magnetron GENERAL DATA Electrical Mechanical Operating frequency 9375 ±30 MHz Overall dimensions see Outline Typical peak output power 25 kW Net weight 0.7 kg approx Cathode indirectly heated Mounting position any Heater voltage (see note 1) 6.3 V Coupler IEC UBR100 Heater current at 6.3V (see note 2) 0.5 A Cooling natural Cathode pre-heating time (minimum) (see note3) 60 s Output no.16 waveguide Input ca.. 2012. 6. 28. MG5437 X-Band Magnetron GENERAL DATA Electrical Mechanical Operating frequency 9410 ±30 MHz Overall dimensions see Outline Typical peak output power 25 kW Net weight 0.7 kg approx Cathode indirectly heated Mounting position any Heater voltage (see note 1) 6.3 V Coupler IEC UBR100 Heater current at 6.3V (see note 2) 0.5 A Cooling natural Cathode pre-heating time (minimum) (see note3) 60 s Output no.16 waveguide Input ca.. 2012. 6. 28. MG5424 X-Band Magnetron GENERAL DATA Electrical Mechanical Operating frequency 9410 ±30 MHz Overall dimensions see Outline Typical peak output power 25 kW Net weight 0.7 kg approx Cathode indirectly heated Mounting position any Heater voltage (see note 1) 6.3 V Coupler IEC UBR100 Heater current at 6.3V (see note 2) 0.5 A Cooling natural Cathode pre-heating time (minimum) (see note3) 60 s Output no.16 waveguide (22.86 *.. 2012. 6. 28. MG5271 X-Band Magnetron ABRIDGED DATA Compact, rugged, lightweight, fixed frequency pulse magnetron, Operating frequency 9375 ± 30 MHz Typical peak output power 25 kW Magnet integral Out put No.16 waveguide Coupler IEC UBR100 Electrical Mechanical Cathode indirectly heated Overall dimensions see outline Heater voltage (see note 1) 6.3 V Netweight 0.7 kg approx Heater current at 6.3V 0.5 A Mounting position any Cathode .. 2012. 6. 28. MG5265 X-Band Magnetron ABRIDGED DATA Fixed frequency pulse magnetron. Operating frequency 9475 ± 20 MHz Typical peak output power 30 kW Output no.16 waveguide (22.86 x 10.16 mm internal) Magnet integral Coupler UG-40B/U (NATO S.N. 5985-99-083-0051) Electrical Cathode indirectly heated Heater voltage (see note 1) 6.3 V Heater current at 6.3V 0.55 A Cathode pre-heating time (minimum)(see note 2) 60 s Heater starting cur.. 2012. 6. 28. 이전 1 2 3 4 5 6 다음
