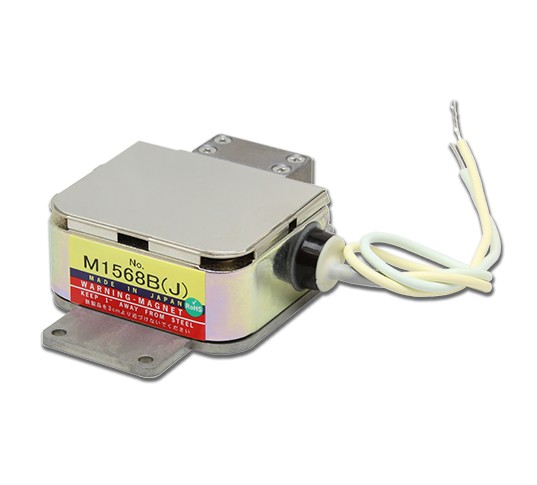

M1568BJ
■ GENERAL DESCRIPTION
M1568B(J) is designed for the magnetron of X-band radar system.
The frequency range is fixed <9380 - 9440MHz> and the peak output power is 25kW.
(주)얼라이드이파트
제품 문의는 아래 연락처를 참고 하세요!
연락처 : 051-441-5331
이메일 : sales@aeparts.kr
