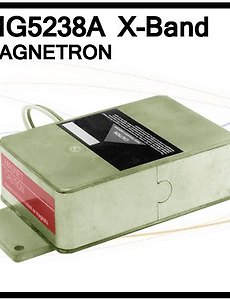

Marine Radar Parts68 M1437A X-Band Magnetron GENERAL DATA Electrical Heater Voltage(Preheat) Min Typical Max Unit 5.7 6.3 6.9 V Heater Voltage(Operation) - 3.7(note 1) - V Preheat time 120 - - S Peak anode voltage 7.5 8.0 8.5 kV Rate of rise of voltage pulse - 70 100 kV/μs Peak anode current 6.0 8.0 10.0 A Mean anode current 6.0 8.0 10.0 mA Peak anode input power - - 75 kW Mean anode input power - - 85 W Pulse duration (Ditected R.F) 0.05 .. 2012. 6. 19. MG5238A X-Band Magnetron ABRIDGED DATA Compact, rugged, lightweight, fixed frequency pulse magnetrons differing only in cold impedance and heater / cathode connections. the MG5238A and MG5238B are electrically and mechanically interchangeable with the M5196A and M5196B respectively. Operating frequency 9445 ± 30 MHz Typical peak output power 4.0 kW Magnet integral Out put No.16 waveguide(0.900x0.400 inch internal) Coupl.. 2012. 6. 19. MG5353 X-Band Magnetron TYPICAL OPERATION Heater voltage Min Typical Max - 6.3 - V Heater current - 0.6 - A Pulse duration - 0.9 - ms Pulse repetition rate - 1000 - pps Peak anode voltage - 1.9 - kV Peak anode current - 2.0 - A Peak output power 1.2 1.5 - kW Mean output power 0.6 0.75 - W RF bandwidth - 2.4 - MHz Sidelobe amplitude - -9 - dB Frequency 9380 - 9440 MHz Missing pulses - - 0.01 % MECHANICAL Overall dimensi.. 2012. 6. 19. MG5223 S-Band Magnetron ABRIDGED DATA Fixed frequency pulse magnetron. Operating frequency 3050 ± 10 MHz Typical peak output power 30 kW Magnet integral Coupler mates with NATO S.N. 5985-99-083-0058 Electrical Cathode indirectly heated Heater voltage (see note 1) 6.3 V Heater current at 6.3V 1.25 A Cathode pre-heating time (minimum) 180 s Heater starting current, peak value, not to be exceeded 6.0 A max Mechanical Over.. 2012. 6. 19. MG5223F S-Band Magnetron ABRIDGED DATA Fixed frequency pulse magnetron. Operating frequency 3050 ± 10 MHz Typical peak output power 30 kW Magnet integral Coupler mates with NATO S.N. 5985-99-083-0058 Electrical Cathode indirectly heated Heater voltage (see note 1) 6.3 V Heater current at 6.3V 1.25 A Cathode pre-heating time (minimum) 180 s Heater starting current, peak value, not to be exceeded 6.0 A max Mechanical Over.. 2012. 6. 15. M5089T / M5089TC 이번에 소개시켜드릴 마그네트론은 주로 육상용 레이더에 많이 사용되는 M5089T 입니다. 출력은 25kW급이며 주파수 대역은 9415-9460Mhz 대역을 가지고 있습니다. ABRIDGED DATA Fixed frequency pulse magnetron. Operating frequency 9415 to 9460 MHz Typical peak output power 25 kW Output no.16 waveguide (22.86 x 10.16 mm internal) Magnet integral Coupler UG-40B/U (NATO S.N. 5985-99-083-0051) Electrical Cathode indirectly heated Heater voltage (see note 1) 6.3 V H.. 2011. 11. 18. PM31 / B3RX1626 PM31/B3RX1626 입니다. 2011. 11. 8. PM51 / B3RX1012 PM51 / B3RX1012 입니다. 2011. 11. 8. RF Receivers Parts List(RF 리시버) E2V Part No. Frequency (MHz) MDS (dBm typical) Noise figure (dB max) Power supplies B3IM16161 9.3 - 9.5 -100 4.7 +15, +5, -15 4 bandwidths, perfomance monitoring, AFC B3IM16171 9.1 - 9.3 -100 4.7 +15, +5, -5.2 Frequency variant of B3IM1616 2011. 8. 16. 이전 1 ··· 4 5 6 7 8 다음
