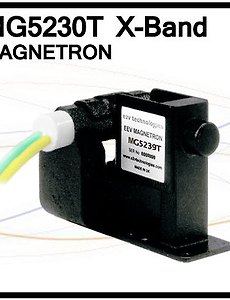

Magnetron53 MG5239T X-Band Magnetron ABRIDGED DATA Fixed frequency pulse magnetron. Operating frequency 9375 ± 25 MHz Typical peak output power 25 kW Output no.16 waveguide (22.86 x 10.16 mm internal) Magnet integral Coupler UG-40B/U (NATO S.N. 5985-99-083-0051) Electrical Cathode indirectly heated Heater voltage (see note 1) 6.3 V Heater current at 6.3V 0.55 A Cathode pre-heating time (minimum)(see note 2) 60 s Heater starting cur.. 2012. 6. 28. MG5231T X-Band Magnetron ABRIDGED DATA Fixed frequency pulse magnetron. Operating frequency 9490 ± 30 MHz Typical peak output power 25 kW Output no.16 waveguide (22.86 x 10.16 mm internal) Magnet integral Coupler UG-40B/U (NATO S.N. 5985-99-083-0051) Electrical Cathode indirectly heated Heater voltage (see note 1) 6.3 V Heater current at 6.3V 0.55 A Cathode pre-heating time (minimum)(see note 2) 60 s Heater starting cur.. 2012. 6. 27. MG5230T X-Band Magnetron ABRIDGED DATA Fixed frequency pulse magnetron. Operating frequency 9170 ± 30 MHz Typical peak output power 25 kW Output no.16 waveguide (22.86 x 10.16 mm internal) Magnet integral Coupler UG-40B/U (NATO S.N. 5985-99-083-0051) Electrical Cathode indirectly heated Heater voltage (see note 1) 6.3 V Heater current at 6.3V 0.55 A Cathode pre-heating time (minimum)(see note 2) 60 s Heater starting cur.. 2012. 6. 27. MG5222 X-Band Magnetron ABRIDGED DATA Fixed frequency pulse magnetron. Direct replacement for the M5039, being mechanically and electrically interchangeable and tested to the same electrical specification. Under most conditions it offers enhanced operating life. Operating frequency 9375 ± 30 MHz Typical peak output power 25 kW Magnet integral Out put No.16 waveguide(0.900x0.400 inch internal) Coupler IEC UBR100 Electri.. 2012. 6. 27. MG5218 X-Band Magnetron ABRIDGED DATA Compact, rugged, lightweight, fixed frequency pulse magnetron. Operating frequency 9410 ± 30 MHz Typical peak output power 25 kW Magnet integral Out put No.16 waveguide Coupler IEC UBR100 Electrical Mechanical Cathode indirectly heated Overall dimensions see outline Heater voltage (see note 1) 6.3 V Netweight 0.7 kg approx Heater current at 6.3V (see note 2) 0.55 A Mounting positio.. 2012. 6. 27. MG5473 X-band Magnetron ABRIDGED DATA Compact, rugged, lightweight, fixed frequency pulse magnetron, designed for marine radar applications. Operating frequency 9410 ± 30 MHz Typical peak output power 12.5 kW Magnet integral Out put No.16 waveguide Coupler IEC UBR100 Electrical Mechanical Cathode indirectly heated Overall dimensions see outline Heater voltage (see note 1) 6.3 V Netweight 0.7 kg approx Heater current at.. 2012. 6. 27. MG5258 X-Band Magnetron ABRIDGED DATA Compact, rugged, lightweight, fixed frequency pulse magnetron, electically and mechanically interchangeable with M5108. Operating frequency 9410 ± 30 MHz Typical peak output power 6.0 kW Magnet integral Out put No.16 waveguide(0.900x0.400 inch internal) Coupler IEC UBR100 Electrical Mechanical Cathode indirectly heated Overall dimensions see outline Heater voltage (see note 1) 6.3 .. 2012. 6. 27. M5068 X-Band Magnetron ABRIDGED DATA Fixed frequency pulse magnetron. Operating frequency 9620 to 9680 MHz Typical peak output power 25 kW Output no.16 waveguide (22.86 x 10.16 mm internal) Magnet integral Coupler UG-40B/U (NATO S.N. 5985-99-083-0051) Electrical Cathode indirectly heated Heater voltage (see note 1) 6.3 V Heater current at 6.3V 0.55 A Cathode pre-heating time (minimum)(see note 2) 60 s Heater starting .. 2012. 6. 27. MG5233 X-Band Magnetron ABRIDGED DATA Lightweight, fixed frequency pulse magnetron. It is electrically and mechanically interchangeable with M5196F. Operating frequency 9410 ± 30 MHz Typical peak output power 8.0 kW Magnet integral Out put No.16 waveguide(0.900x0.400 inch internal) Coupler IEC UBR100 Electrical Mechanical Cathode indirectly heated Overall dimensions see outline Heater voltage (see note 1) 6.3 V Netweig.. 2012. 6. 27. 이전 1 2 3 4 5 6 다음
