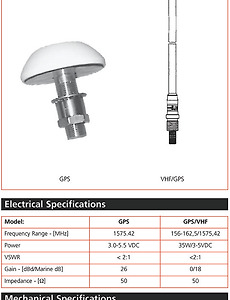

Electrical Specifications

 Model

GPS

VHF/GPS

 Frequency Range - [MHz]

1575.42

156-162.5/1575.42

 Supply Voltage [VDC]

3.0-5.5

3.0-5.0

 Power Rating VHF [Watt]

 –

35W

 VSWR

< 2:1

< 2:1

 Gain - [dB]

26

0/18

 Impedance - [Ω]

50

50



Mechanical Specifications

 Model

GPS

VHF/GPS

 Length [m/ft]

0.047xØ 0.05 / 0.15xØ0.16

1.1/3.6

 Weight - [kg/lbs]

0.05/0.17

0.6/1.6

 Connector FME

FME-Male

N-Female



Electrical Specifications
Model: K650F
Insertion Loss VHF [dB]: < 1.0, typ 0.8 dB
Insertion Loss GPS [dB]: < 3.0, typ 2.4 dB
Isolation of GPS in VHF path [dB]: > 18 dB
Isolation of VHF in GPS path [dB]: > 60 dB
Power Rating VHF [Watt]: 25
Power Common Connector [VDC]: 3-5.5VDC in
Power GPS connector [VDC] : 2.5VDC out
Mechanical Specifications
Model: K650F
Connector type: 3 x FME-Male
Dimensions [mm]: 80 x 45 x 22
Weight - [kg/lbs.] 0.06
Mounting Supplied AdheasiveGPS

The GPS marine antenna is for the frequency 1575.42 MHz and easy to install.
The antenna can be installed directly on the deck - no problem to walk on the antenna - or
on a rail mount or any of the 1” - 14 standard marine mounts (together with adaptor N225F).

Adaptor cables are available for the different manufacturers GPS receivers with FME
connector to fit the GPS and the necessary connector for the manufacturer such as SMA,
SMB, MCX, MMCX, TNC, BNC, or others


VHF/GPS
The VHF/GPS marine antenna is for the frequencies 156-162,5 and 1575.42MHz.
The GPS antenna is a helix type installed in the top of the antenna. A separate filter is
included. (See below picture).

The GPS has a built-in LNA. The VHF/GPS antenna has the AC Marine
rugged design and quality. And can be used with the standard AC Marine mounts.

AC마린의 선박용 GPS안테나는 아주 컴팩트한 디자인으로 공간이 협소한 어선에도 잘 어울리면서
수신율 또한 뛰어납니다.

VHF/GPS 안테나는 세계최초 VHF와 GPS를 결합한 안테나로 하나의 안테나로 두개의 안테나
역활을 하는 안테나 입니다. AIS 같이 VHF GPS를 동시에 사용하는 기기에 적합합니다.
