Medical Parts/Thyratron 2013.09.13 11:06

ABRIDGED DATA

Deuterium-filled tetrode thyratron of ruggedised construction,suitable for use in airborne or
mobile military radar systems. It isused for switching peak powers up to 8.0 MW at high repetition
rates under a wide range of operating conditions. It has arugged, internally connected reservoir.
Samples are subjected to extensive environmental test procedures including vibration
at 2g from 50 to 200 Hz.

Peak forward anode voltage

35

kVmax

Peak anode current

500

A max

Average anode current

0.5

A max

Electrical

Mechanical

Cathode (connected internally
to mid-point of heater)

oxide coated

Overall length

223.8 mm max

Heater voltage

6.3 ± 7 1/2%

V

Base

B4D, bayonet

Heater current

12.5

A

Net weight

340 g approx

Tube heating time (minimum)
(see note 1)

5.0

min

Overall diameter

65.1 mm max

Inter-electrode capacitances (approximate): Mounting position
(see note 2)
any
anode to grid 2
(grid 1 and cathode not connected)
9.0 pF Top cap connector
BS448-CT3
anode to grid 1
(grid 2 and cathode not connected)
4.5 Cooling
(see note 3)
natural

anode to cathode
(grid 1 and grid 2 not connected)

18

NOTES

1. The maximum permissible peak forward voltage for instantaneous starting is 20 kV and there must be no overshoot. For single-shot and crowbar applications, each tube is tested to withstand 35 kV DC at 6.3 V heater voltage for 10 minutes, with 100 mA grid 1 drive current and 7100 V grid 2 bias.

2. Clamping is only permissible by the base.

3. In some applications, air cooling may be necessary to prevent the base temperature from exceeding 200

.

OUTLINE(All dimensions without limits are nominal)

'Medical Parts > Thyratron' 카테고리의 다른 글

CX1191D Deuterium Thyratron  (0) 2013.09.13
Medical Linac Thyratron List  (0) 2012.06.20
CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
Medical Parts/Vacuum pump 2012.06.21 16:34

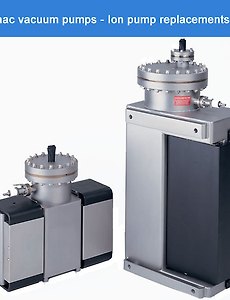

Replacement vacuum pumps

Linac machines are equipped with vacuum pumps, which need to be serviced after several years of operation. These Ion Getter Pumps are housed in a magnet assembly and can easily be disassembled from your system. Alphatron, global supplier of linac magnetrons and thyratrons, now also offers new and rebuild vacuum pumps for your linac machine from different brands such as Varian, Perkin Elmer,Physical Electronics, Riber, Edwards and Leybold.

Advantage Elekta machines

Our pumps are suitable for various linac machines but we offer a great advantage in case you have an Elekta linac machine.

These machines used to be equipped with the Edwards vacuum pump EP 1/30 but this pump is no longer made by the OEM. New Elekta machines now have Varian Ion Getter Pumps instead of the Edwards pumps. Elekta recommends pumps fitted in older Elekta machines to be replaced by Varian pumps. This is a very costly procedure.

We now offer you a much cheaper option which is to have your existing EP1/30 Ion Getter Pump re-build. Not only will you have the same performance as before, it also does not require expensive modifications. All you need to do is to remove and replace the saturated ion pump. What is more, the warranty on rebuild Ion Getter Pumps is identical to a new pump.

Procedure rebuild Ion Getter Pump

When an Ion Getter Pump is rebuild the procedure described below is followed:

  • Open pump and disassemble the elements
  • Clean stainless steel components
  • Replace titanium parts
  • Clean and/or replace ceramic parts
  • Vacuum degas all metal parts
  • Install the elements in the clean body
  • Leak check the pump
  • Bake out on vacuum manifold
  • Check leakage current and pinch off seal

'Medical Parts > Vacuum pump' 카테고리의 다른 글

Linac vacuum pumps - Ion pump replacements  (0) 2012.06.21
posted by (주)얼라이드이파트(AEP) 얼라이드이파트

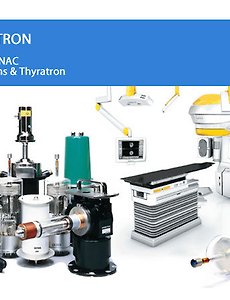

Medical Parts 2012.06.20 17:48

Alphatron Electronic Parts B.V. and e2v technologies have formed a strategic partnership for
after sales support of linear accelerator tube spares. For the customers, hospitals, this means there's a clear and accessible global point of contact for purchasing the Linac magnetrons
and thyratrons when immediate delivery is required.

Alphatron and e2v have a 25-year relationship, of which Linac magnetrons and thyratrons
have been a part for over 20 years.

알파트론 그룹은 E2V사와 20년이상 전략적인 파트너쉽과  릴레이션쉽을 가지고
선형가속기(Linac)의 부속품인 마그네트론 및 사이렉트론(Thyratron)을 공급해왔습니다.

상시 재고를 확보해 있어서 최단시간에 공급이 가능합니다.

'Medical Parts' 카테고리의 다른 글

Alphatron Medical Linac (선형가속기)  (0) 2012.06.20
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
Medical Parts/Thyratron 2012.06.20 17:45

We have an extensive thyratron range, suitable for most LINAC machines.

The original equipment manufacturers only approve e2v valves for service replacement.

E2V Part No.

Peak Anode
Voltage

Peak Current
(kA)

Maximum
Average Current(A)

 8503AF

20

0.325

0.5

 8503AG

20

0.325

0.5

 8503B

20

0.325

0.5

 CX1140

25

1

1.25

 CX1140A

25

1

1.25

 CX1140L

25

1

1.25

 CX1140LD

25

1

1.25

 CX1140LE

25

1

1.25

 CX1154

40

3

2

 CX1154L

35

3

2

 CX1159

33

1

1.25

 CX1180

25

1

1.25

 CX1528

35

5

5

 CX1559

35

1.5

1.5

 FX2536

16

0.35

0.5

 FX2572

20

0.35

0.5

 FX2585

20

0.325

0.5

 MA391 Series

Current Pulse Measurement Transformers

'Medical Parts > Thyratron' 카테고리의 다른 글

CX1191D Deuterium Thyratron  (0) 2013.09.13
Medical Linac Thyratron List  (0) 2012.06.20
CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
Medical Parts/Magnetron 2012.06.20 14:52

E2V Part No.
Frequency (MHz)
Peak Power (kW)

M5028

2852 - 2861

5500

MG6363

2852 - 2861

5500

MG6028

2852 - 2861

5500

MG5125

2993 - 3002

2000

MG5125P

2993 - 3002

2000

MG5125X

2993 - 3002

2000

MG5167

Obsolete, use MG5193

MG5193

2992 - 3001

2600

MG5349

Obsolete, use MG6090

MG5349M

2992 - 3001

3100

MG6090

2993 - 3002

3100

Magnetron type number cross-reference table

Generic type
Varian
Siemens
Elekta
Mitsubishi

M5028

MG6363

MG6028

MG6370

MG5125

MG6105

MG6220

MG6525

MG5125P

MG6330

MG5193

MG6165

MG6250

  MG6090

 MG6190

 MG6290





'Medical Parts > Magnetron' 카테고리의 다른 글

Linac 마그네트론 & 호환 List  (0) 2012.06.20
E2V MG5193 Tunable S-Band Magnetron  (0) 2011.08.12
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
Medical Parts/Thyratron 2012.06.15 14:47

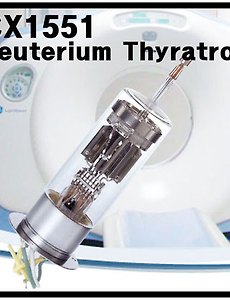

ABRIDGED DATA

Deuterium-filled tetrode thyratron, featuring low jitter and low anode delay time drift.
Suitable for use at high pulse repetition rates,
in parallel for switching higher powers, or for switching long pulses.
A reservoir operating from the cathode heater supply is incorporated.
The tube is flange mounted with flexible lead connections.

Peak output power

16.5

MW max

Peak forward anode voltage

33

kVmax

Peak anode current

1.0

kA max

Average anode current

1.25

A max

Anode heating factor

14 x 109 VApps

max

Electrical

Cathode (connected internally
to mid-point of heater)

oxide coated

Heater voltage

6.3 ± 5%

V

Heater current

22

A

Tube heating time (minimum)

5.0

min

         Inter-electrode capacitances (approximate):

anode to grid 2 (grid 1 and
cathode not connected)

13

pF

anode to grid 1 (grid 2 and
cathode not connected)

7.5

anode to cathode (grid 1 and
grid 2 not connected)

26

Mechanical

Overall length

11.850 inches (301.0 mm) max

Overall diameter

3.312 inches (84.12 mm) max

Net weight

1 1/2 pounds (0.7 kg) approx

Mounting position (see note 1)

any

Top cap (see note 2) B.S.448-CT3
Cooling natural



NOTES

1. Clamping is only permissible by the base.
2. A large area anode connector, Marconi Applied Technologies type MA360, is recommended.



OUTLINE(All dimensions without limits are nominal)

'Medical Parts > Thyratron' 카테고리의 다른 글

CX1191D Deuterium Thyratron  (0) 2013.09.13
Medical Linac Thyratron List  (0) 2012.06.20
CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
Medical Parts/Thyratron 2012.06.15 14:25

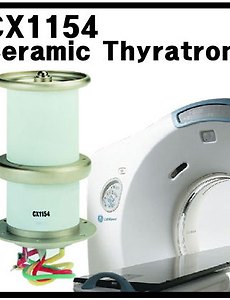

ABRIDGED DATA

Deuterium-filled tetrode thyratron with ceramic/metal envelope, featuring low jitter, firing time and drift.
Suitable for switching high power at high pulse repetition rates or for switching long pulses.
A reservoir operating from a separate heater supply is incorporated.

Peak forward anode voltage

40

kVmax

Peak anode current

3.0

kA max

Average anode current

2.0

A max

Electrical

Cathode (connected internally
to one end of heater)

oxide coated

Cathode Heater voltage

6.3 ± 0.5

V

Cathode Heater current

22.5

A

Reservoir heater voltage
(see note 1)

5.0

V

Reservoir heater current

7.0 A

Tube heating time (minimum)

15

min

Anode to grid 2 capacitance

15 to 20

pF

Mechanical

Seated height

165.1 mm max

Clearance required below mounting flange

38.1 mm max

Overall diameter (mounting flange)

111.1 mm nom

Net weight

1.8 kg (4 pounds) approx

Mounting position (see note 2) any

Tube connections

see outline

Cooling

liquid or forced-air

NOTES

1. The reservoir heater must be decoupled with a suitable capacitor to avoid damage by spike voltages.  The recommended reservoir heater voltage for each individual tube is stamped on the tube envelope. This recommended value is determined for hold-off at the maximum anode voltage under DC conditions.
For lower voltages and modulator operation the reservoir heater voltage should be increased to a
value consistent with voltage hold-off at the operating level. Maximum reservoir voltage (i.e. maximum gas pressure in the tube) is one prerequisite for maximum thyratron life. The reservoir voltage should be stabilised to +0.05 V.



2. The tube must be fitted using its mounting flange.



OUTLINE(All dimensions without limits are nominal)



'Medical Parts > Thyratron' 카테고리의 다른 글

Medical Linac Thyratron List  (0) 2012.06.20
CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
E2V 8503AG Hydrogen Thyratrons  (0) 2011.08.18
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
Medical Parts/Accessory 2011.11.08 15:05

E2V
Part No.

Used on

Description

MG6062

MG5125, MG5125P,
MG5125X, MG5193, MG6060

Water cooled electromagnet

MG6053

MG5349, MG6090

Water cooled electromagnet

MG6030

MG5028, MG6028

Water cooled electromagnet
and transition to UG-53/U

M4152S

MG5125, MG5125P,
MG5125X, MG5193, MG6060

Transition section to WG10/WR284
rectangular flange CPR284F

MA761

M5028

Radiation absorber

MG6016

MG6028

Radiation absorber

MA997A

M5028, MG6028

Capacitor


알파트론은 선형가속기에 사용되는 마그네트론의 악세사리및 마그넷 또한 재고를 가지고 있어 가장
빨리 공급이 가능합니다.

'Medical Parts > Accessory' 카테고리의 다른 글

Accessories and magnets for linear accelerator magnetrons  (0) 2011.11.08
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
Medical Parts/Thyratron 2011.09.19 16:17



CX1140LD를 대처하는 신공정 제품입니다!
알파트론은 상시 재고를 확보하고 있어 빠른 시간안에 딜리버리가 가능합니다!



GENERAL DATA

Electrical

Cathode connected
(indirectlyto mid-point of heated)

oxide
coated

Heater voltage

6.3+-5%

V

Heater current

22

A

Tube heating time (minimum)

5.0

min

Mechanical

Overall length

317.5 mm (12.500 inches) max

Overall diameter

84.12 mm (3.312 inches) max

Net weight

0.7kg(11/2 pounds) approx

Mounting position
(see note 1)

any

Cooling

natural

Base pin spacing as B5F;
metal shell with micalex insert

Top cap (see note 2)

BS448-CT3 CX1140LD is
also available with a flange base with
flying leads as type CX1551L.

Notes

1. Clamping is only permissible by the base.
2. A large area anode connector, e2v technologies type
MA360, is recommended.





OUTLINE(All dimensions without limits are nominal)


'Medical Parts > Thyratron' 카테고리의 다른 글

CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
E2V 8503AG Hydrogen Thyratrons  (0) 2011.08.18
E2V 8503AF Hydrogen Thyratron(사이렉트론)  (0) 2010.12.24
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
Medical Parts/Thyratron 2011.09.05 12:14

ABRIDGED DATA
Deuterium-filled, fast recovery, tetrode thyratron, specifically designed for operation under medical linac conditions. A reservoir operating from the cathode heater supply is incorporated.
Peak forward anode voltage . . . . . . 33 kVmax
Peak anode current . . . . . . . . 1000 A max
Average anode current:
continuous operation . . . . . . . . 1.25 A max
intermittent operation . . . . . . . . 2.2 Amax

GENERAL Electrical
Cathode (connected internally to mid-point of heater) . . . . . . . . oxide coated
Heater voltage . . . . . . . . . 6.3+ 5% V
Heater current . . . . . . . . . . . 22 A
Tube heating time (minimum) . . . . . . . 5.0 min

Mechanical
Overall length . . . . . 317.5 mm (12.500 inches) max
Overall diameter . . . . . 84.12 mm (3.312 inches) max
Net weight . . . . . . . 0.7kg(11/2 pounds) approx
Mounting position (see note 1) . . . . . . . . . any
Base . pin spacing as B5F; metal shell with micalex insert
Top cap (see note 2) . . . . . . . . . BS448-CT3
CX1140LD is also available with a flange base with flying leads
as type CX1551L.
Cooling . . . . . . . . . . . . . . . natural

알파트론은 상시 재고를 확보하고 있어 빠른 시간안에 딜리버리가 가능합니다!

'Medical Parts > Thyratron' 카테고리의 다른 글

CX1551 Thyratron  (0) 2012.06.15
CX1154 Ceramic Thyratron  (0) 2012.06.15
E2V CX1140LE Hydrogen Thyratrons  (0) 2011.09.19
E2V CX1140LD Hydrogen Thyratrons  (0) 2011.09.05
E2V 8503AG Hydrogen Thyratrons  (0) 2011.08.18
E2V 8503AF Hydrogen Thyratron(사이렉트론)  (0) 2010.12.24
posted by (주)얼라이드이파트(AEP) 얼라이드이파트
