Marine Radar Parts/Magnetron

M1568BJ S-Band Magnetron

얼라이드이파트 2025. 9. 5. 11:10

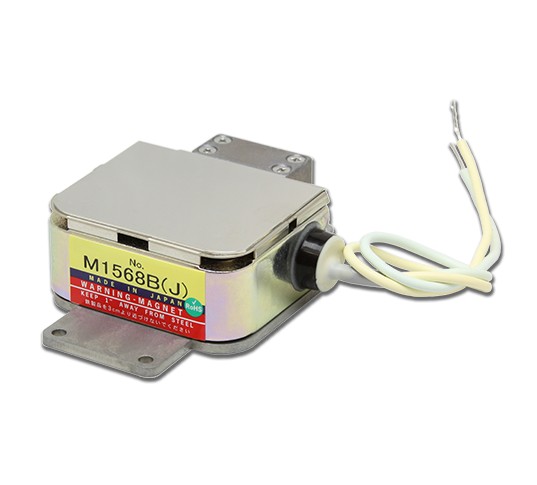

M1568BJ

■ GENERAL DESCRIPTION

M1568B(J) is designed for the magnetron of X-band radar system.

The frequency range is fixed <9380 - 9440MHz> and the peak output power is 25kW.







(주)얼라이드이파트

제품 문의는 아래 연락처를 참고 하세요!

연락처 : 051-441-5331

이메일 : sales@aeparts.kr
